AutoVISION®: Machine Vision, Simplified. Designed for simplicity and ease of use, AutoVISION empowers manufacturers to implement inspection without any advanced knowledge of machine vision or automation technology. This family of intuitive software and smart cameras provides tools for decoding, error-proofing, quality control, verification, and more and comes equipped with the customizable CloudLink interface for monitoring inspection jobs from any web-enabled device. Portable and scalable across cameras, software platforms, industrial systems, and mobile devices, AutoVISION provides a single, adaptable vision system to simplify every inspection challenge. AutoVISION: Intuitive software, 3-step setup, powerful inspection tools – no experience needed. Vision MINI: World's smallest vision system. Vision HAWK: Most flexible, industrial vision system.

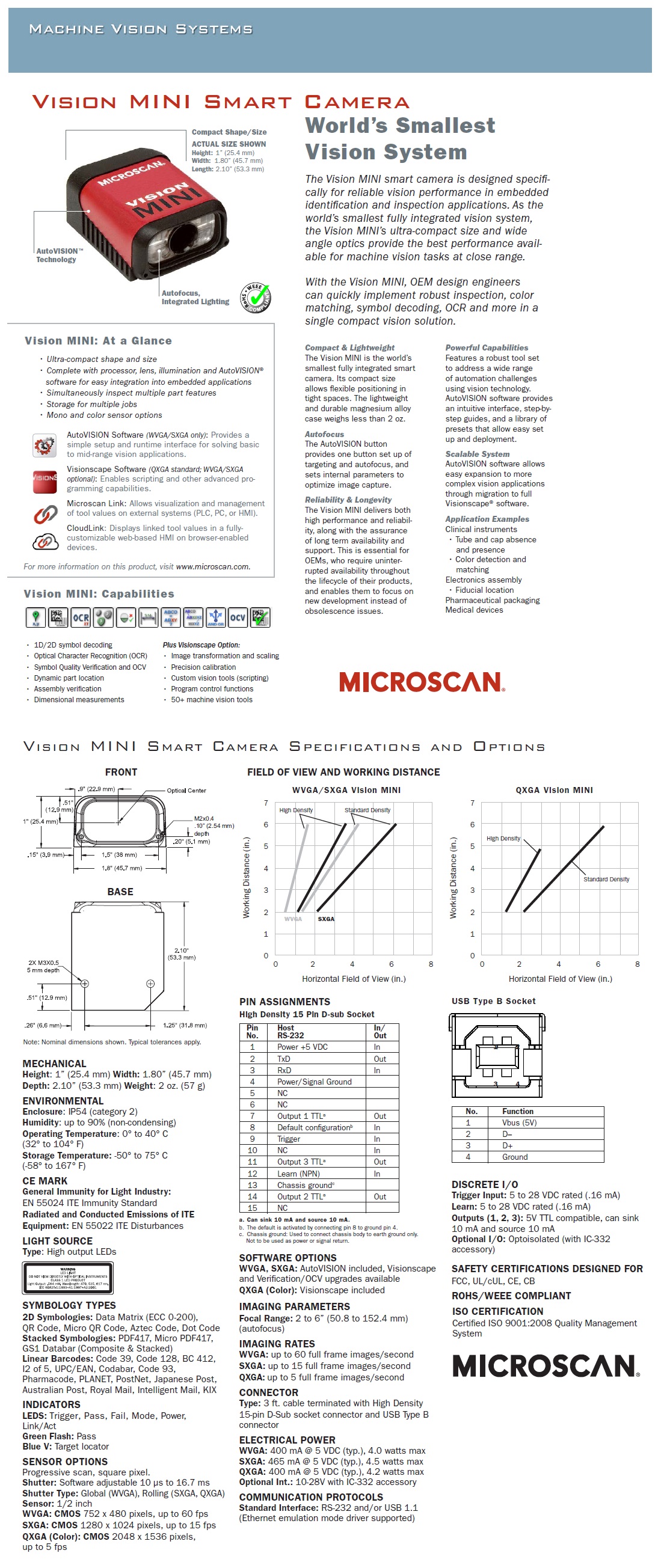

Vision MINI: World's Smallest Machine Vision Smart Camera The Vision MINI Smart Camera is a full suite of machine vision tools, integrated lighting, and autofocus packed into a 2-ounce package that fits any inspection environment. Available with both USB connectivity and integrated Ethernet for industrial applications, Vision MINI is ideally suited for OEMs who need the to get the most inspection power in the smallest spaces. Intuitive setup with AutoVISION software Smallest form factor for vision inspection Integrated LED lighting Built-in adjustable autofocus Color vision inspection capability Embedded Ethernet in Vision MINI Xi
Ultra-Compact Shape and Size OEM-Ready For Easy Installation Storage for Multiple Jobs Complete with Processor, Autofocus Lens, and Illumination Simplified Programming with AutoVISION Advanced Programming with Visionscape
The Vision MINI smart camera is designed specifically for reliable vision performance in embedded identification and inspection applications. As the world’s smallest fully integrated vision system, the Vision MINI’s ultra-compact size and wide angle optics provide the best performance available for machine vision tasks at close range.
With the Vision MINI, OEM design engineers can quickly implement robust inspection, color matching, symbol decoding, OCR and more in a single compact vision solution.
World's Smallest: The Vision MINI is the world’s smallest fully integrated vision system. Its compact size allows flexible positioning in tight spaces. The lightweight and durable magnesium alloy case weighs less than 2 oz.
Powerful Capabilities: Features a robust tool set to address a wide range of automation challenges
using vision technology. AutoVISION software provides an intuitive interface, step-by-step guides, and a library of presets that allow easy set up and deployment. Visionscape software is available for advanced users and more complex applications.
Long Term Availability and Reliability: The Vision MINI delivers both high performance and reliability, along with the assurance of long term availability and support. This is essential for OEMs, who require uninterrupted availability throughout the lifecycle of their products, and enables them to focus on new development instead of obsolescence issues.
Vision MINI Smart Camera: Capabilities Image transformation and scaling Precision calibration Custom vision tools (scripting) Program Control functions 50+ machine vision tools
Height: 1” (25.4 mm) Width: 1.80” (45.7 mm) Depth: 2.10” (53.3 mm) Weight: 2 oz. (57 g)
Progressive scan, square pixel. Shutter: Software adjustable 10 μs to 16.7 ms Shutter Type: Global (WVGA), Rolling (SXGA, QXGA) Sensor: 1/2 inch WVGA: CMOS 752 x 480 pixels, up to 60 fps SXGA: CMOS 1280 x 1024 pixels, up to 15 fps QXGA (Color): CMOS 2048 x 1536 pixels, up to 5 fps
WVGA, SXGA: AutoVISION included, Visionscape upgrade available QXGA (Color): Visionscape included
Clinical instruments Printed circuit boards Electronics assembly Medical devices Component tracking Pharmaceutical packaging
|
|
|
 |
|
 |
|
