Parker: Servo & Stepper Drive (ViX Series)

Small, Intelligent and Powerful Digital Servo/Stepper Drives and Drive/Controllers

With its all-digital, DC-powered design, the ViX family of award winning drives and drive/controllers offers a new level of economical servo performance. Available in both drive-only and intelligent-drive/controller platforms, the ViX family gives users a robust and cost-effective DC product, particularly in multi-axis applications.

ViX General Features:

• Up to 80VDC bus voltage

• Compact size: 4.9 x 1.65 x 3.35 inches

• Standard RS232C ASCII interface

• 5 digital inputs and 3 digital outputs (software configurable)

• CE (EMC & LVD), UL compliant

• Auto-correction of motor phase/feedback wiring (servo only)

Servo-Specific Features:

• Accepts analog (±10V), step/direction, CW/CCW signals

• Encoder following

• Current outputs of 2.5A RMS continuous and 5A RMS continuous

• Resolver or encoder feedback

• Drive Output Current: 2.5A RMS continuous, 7.5A RMS peak*

• Motor HV supply input: 24 – 80V DC +5% -15%

• Minimum PSU capacitance: 3,300μF

Stepper-Specific Features:

• Integer selectable resolution from 200 to 51,200 steps/rev

• Anti-resonance circuitry suppresses mid-range instability

• Recommended motor inductance range of 0.5 mH to 20 mH

• Drive Output Current: 4.0A pk (2.8 Arms)

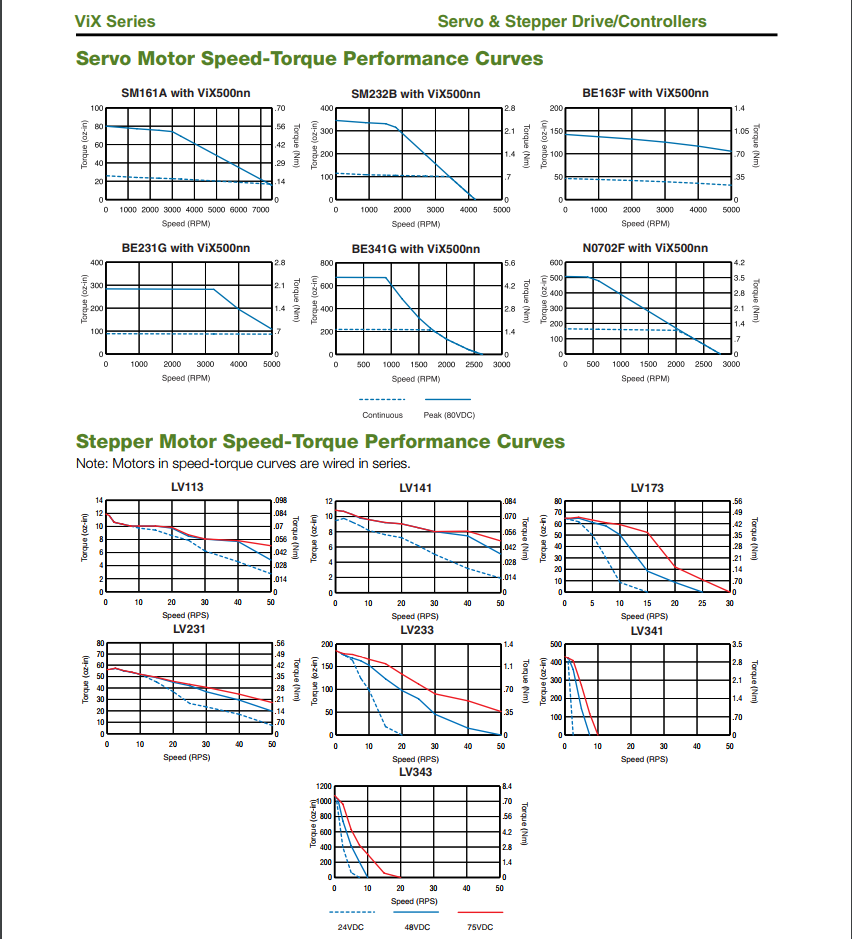

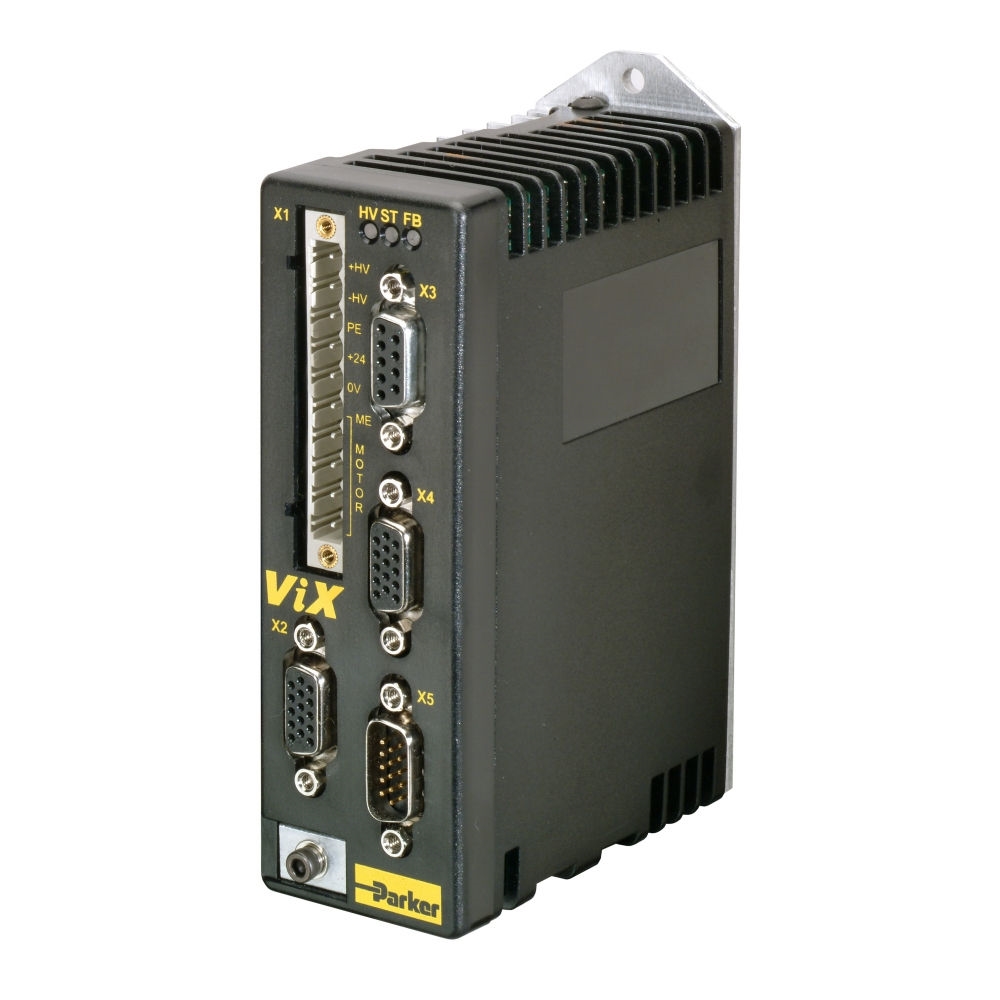

Model No.: VIX250AE-DRIVE, VIX250AH-DRIVE (Hi-Res Enc)

* Maximum duration at peak current - 2 seconds; maximum duty cycle - 10%. The time limit is set by an I2t circuit and will be reduced if the motor is stationary.
