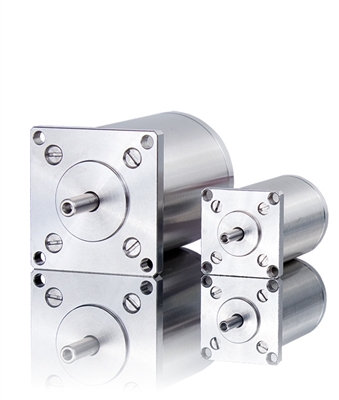

Phytron: Vacuum Stepper Motors (VSS Series)
Precision that moves.
Stepper motors are synchronous motors. The rotor follows an electrically charged magnetic field. The stepper motor uses a closed loop control system as opposed to the servomotor. This means that position and the number of revolutions are known even without sensor technology by principle. In addition, stepper motors are highly reliable and long-lasting due to their precision and economical construction, even in extreme environments.
Vacuum Stepper Motors VSS / VSH: 19 – 125 mm
Dominant: solutions that perform in extreme conditions.
Phytron’s VSS stepper motors are the result of more than 30 years of experience in space technology. The specially designed two phase, hybrid stepper motors can be used in vacuum environments up to 10 -11 hPa. They are optimal for extraordinary environments such as deep and high temperatures or extreme radiation intensity.
Technical Details
Stepper motors for vacuum applications
Winding temperature range from –20 to +300 °C
Radiation resistance up to 106 J/kg
Holding torques from 3.4 mNm to13 Nm
Diameters 19 to 125 mm
Number of steps: 200 (1.8°) standard
Step accuracy 5 %
Vacuum classes:
Fine vacuum up to 10-3 kPa
High vacuum up to 10-7 hPa
Ultra high vacuum up to 10-11 hPa (dry bearing or greased bearing)

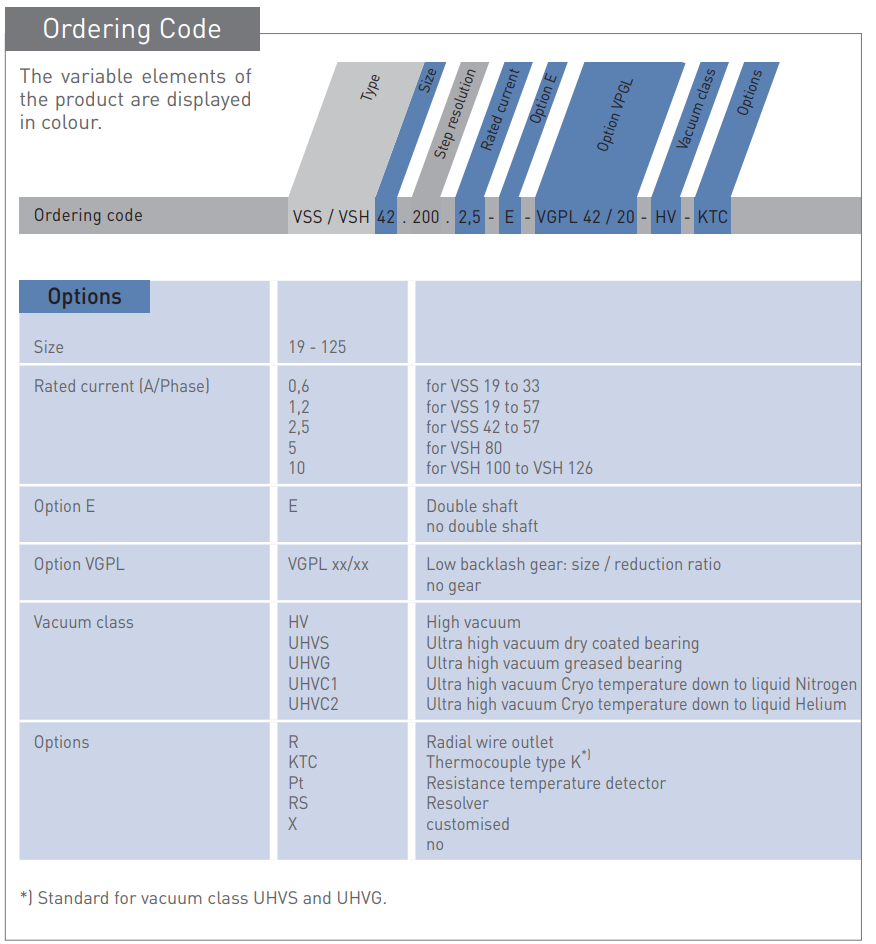

Optional:
VPGL planetary-/Harmonic Drive gear, Thermal element type KTC/ Pt100 resistor sensor, resolver, double shaft.
Customized Design:
Operating in an aggressive environment, clean room compatible, motors with spindle.
Model No.: VSS19, VSS25, VSS26, VSS32, VSS33, VSS42, VSS43, VSS52, VSS56, VSS57, VSS80, VSS100, VSS126
