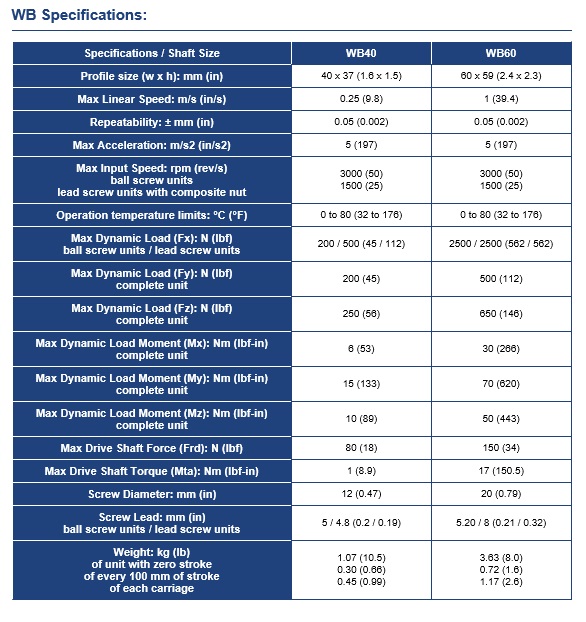

Description Specifications and Drawings


Thomson: Ball Screw Driven-Slide Guided Units

Ball screw driven, slide guided positioning slides by Thomson are designed for high thrust applications with low cost restraints. They work well in demanding environments with optional washdown protections.

WB (BASELine) Linear Units

Thomson's WB (BASELine) linear drive models (WB40/60) provide enhanced reliability combined with very low maintenance requirements. With a low-backlash single nut within an aluminum profile, these units can be screwed directly to the machine frame using mounting strips. The compact interface between the linear drive unit and the motor, called the power bridge, now has the same flat design of earlier versions.

WB Feature Highlights:

  • Robust slide guides

  • Ball or lead screw drives

  • Plastic cover band

  • Central lubrication system

Model No.: WB40, WB60
