Thomson: Belt Driven-Ball Guided Units (WH Series)
Thomson: Belt Driven-Ball Guided Units (WH Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: WH40
.

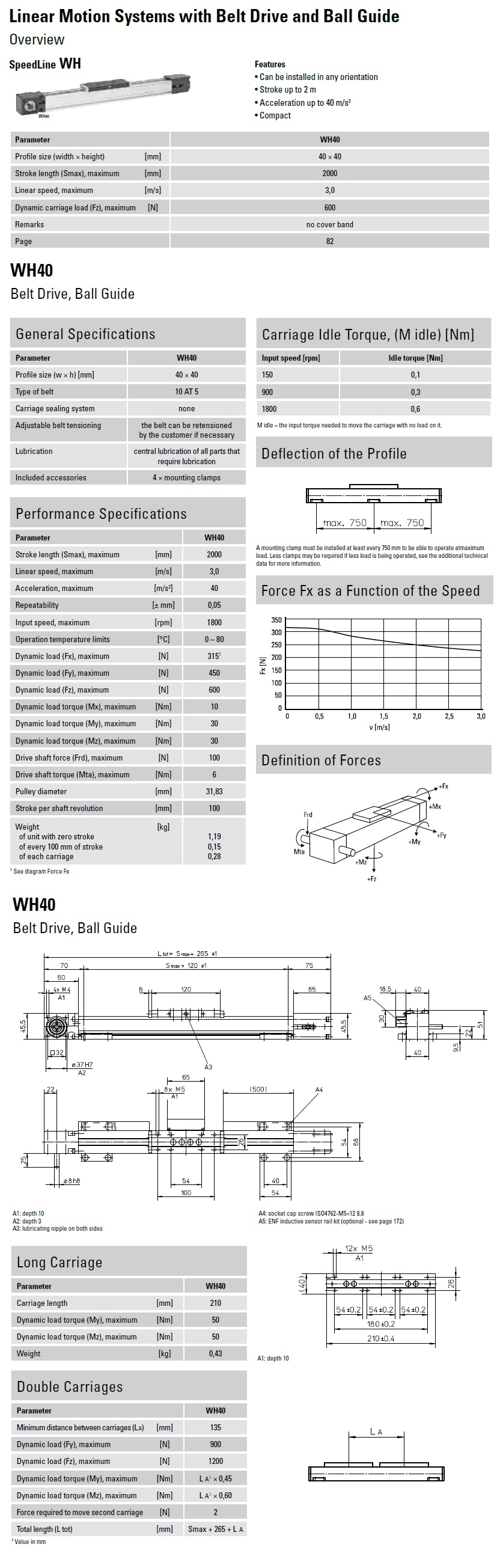

Description Specifications and Drawings


Thomson: Belt Driven-Ball Guided Units

Belt driven, ball guided positioning slides by Thomson are designed for smooth travel in dynamic applications requiring high speed, high acceleration. These families present a long life performance in the midst of acceleration rates up to 40 m/s2.

WH (SPEEDLine®) Linear Units

SPEEDLine WH40 positioning slide is a miniaturized linear drive unit designed for extremely small and compact dimensional applications. Built with a low coefficient of friction, these slides make it easy to fit smaller motors. Rubber wipers protect the mechanism from dirt, increasing service life.

WH Feature Highlights:

  • Four KAO mounting brackets

  • Multi-direction installation

  • Centralized lubrication system

  • Adjustable belt retensioning

  • Can be installed in all directions

  • Compact
