SIKO: Absolute Rotary Encoder (WV36M/SSI Series)
SIKO: Absolute Rotary Encoder (WV36M/SSI Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: WV36M-SSI
.

Description Specifications and Drawings

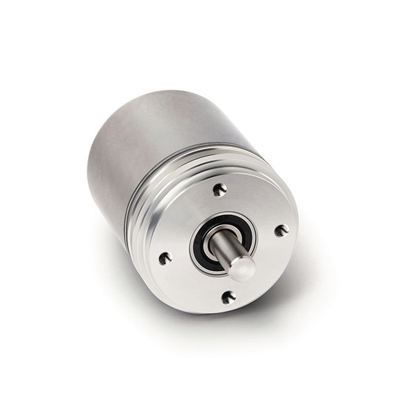

SIKO: Absolute Encoder (WV36M/SSI Series)

Metal housing with solid shaft

Magnetic, absolute multi-turn rotary encoder WV36M/SSI -batteryless, with SSI interface. Owing to its double ball bearing, small design and wear-free magnetic measurement method, the WV36M/SSI is also best suited for positioning jobs in mechanically demanding environments.

Profile WV36M/SSI:

  • Compact design (36.5mm diameter)

  • SSI interface

  • IP64 type of protection

  • Multi-turn without battery

  • Double ball bearings

  • 13 bit multi-turn (8192 revolutions)

  • 12 bit single-turn (4096 steps)
