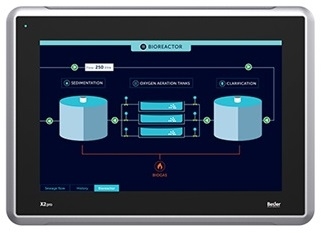

Beijer Electronics: Operator Panels (X2 pro)

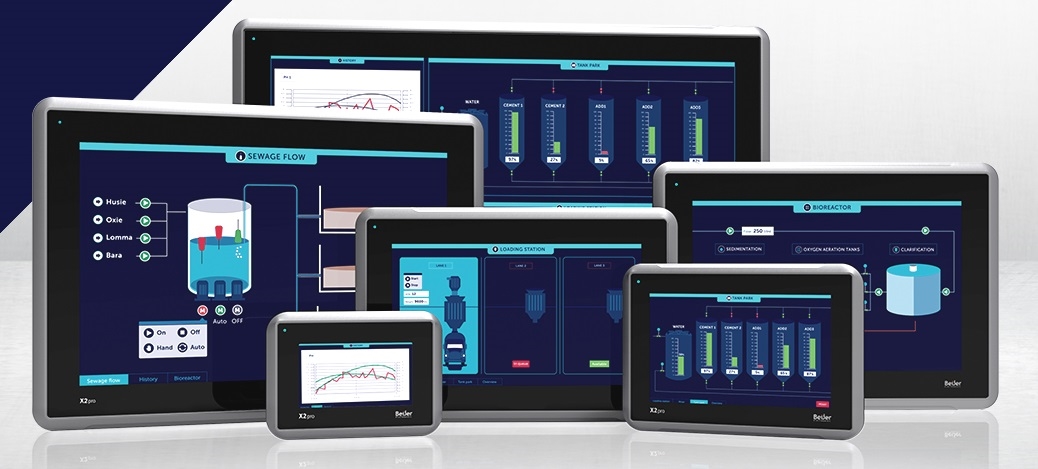

High performance HMIs for all automation needs X2 pro includes a wide range of high performance industrial panels from ultra-compact 4-inch to 21-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs. Powerful ARM Cortex-A9 processor Powerful single or dual core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications. Robust aluminum housing Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or wash-downs, dirt, grime and dust. Wide operating temperature The wide -10°C to +60°C operating temperature range satisfies the demands of most industries. UL, CE, FCC and KCC certificates The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates. Marine certifications The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations. iX software – why you’ll love our hardware The iX software gives you smart communication tools. It combines top-class vector graphics and easy-to-use functions that provide reliable operation, and almost limitless connectivity to your other equipment.
X2 pro 4
4'' HMI with iX runtime 480 × 272 pixel (16:9) TFT-LCD touch screen 1.5 GB application memory Ethernet 1x100 Mbit -10°C to +60°C operating temperature CE, FCC, KCC, UL approvals DNV, KR, GL, LR, ABS, CCS marine approvals
X2 pro 7
7'' HMI with iX runtime 800 × 480 pixel (16:9) TFT-LCD touch screen 1.5 GB application memory Ethernet 1x100 Mbit -10°C to +60°C operating temperature CE, FCC, KCC, UL approvals DNV, KR, GL, LR, ABS, CCS marine approvals
X2 pro 10
10'' HMI with iX runtime 1024 × 600 pixel (16:9) TFT-LCD touch screen 1.5 GB application memory Ethernet 2x100 Mbit -10°C to +60°C operating temperature CE, FCC, KCC, UL approvals DNV, KR, GL, LR, ABS, CCS marine approvals
X2 pro 12
12'' HMI with iX runtime 1280 × 800 pixel (16:10) TFT-LCD touch screen 1.5 GB application memory Ethernet 2x100 Mbit -10°C to +60°C operating temperature CE, FCC, KCC, UL approvals DNV, KR, GL, LR, ABS, CCS marine approvals
X2 pro 15
15'' HMI with iX runtime 1280 × 800 pixel (16:10) TFT-LCD touch screen 1.5 GB application memory Ethernet 2x100 Mbit -10°C to +60°C operating temperature CE, FCC, KCC, UL approvals DNV, KR, GL, LR, ABS, CCS marine approvals
X2 pro 21
21'' HMI with iX software Full 1920 × 1080 pixel HD resolution (16:9) TFT-LCD touch screen 1.5 GB application memory Ethernet 2x100 Mbit 0°C to +50°C operating temperature CE, FCC, UL approvals
|
|
|
 |
|
 |
|
