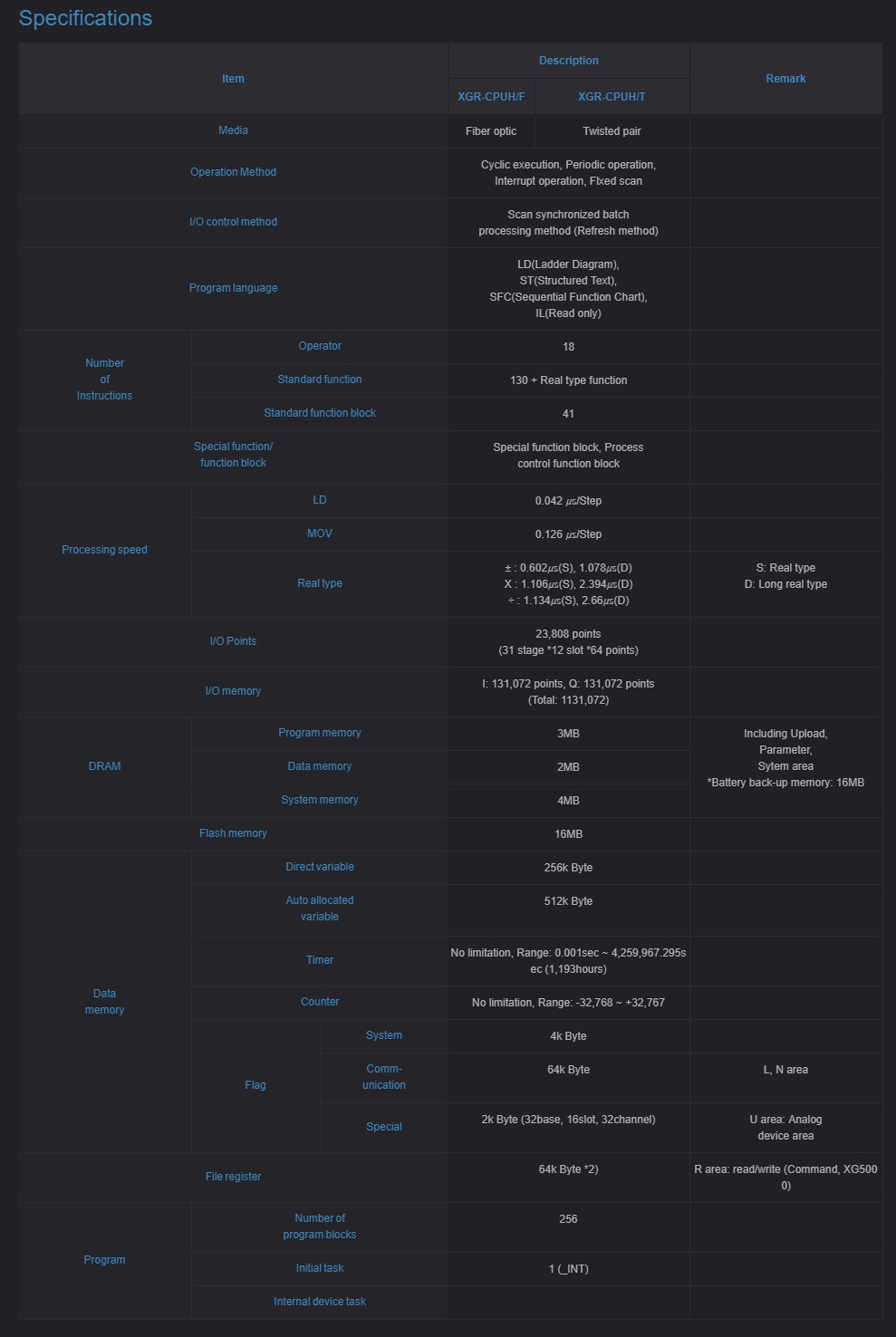

Description Specifications and Drawings

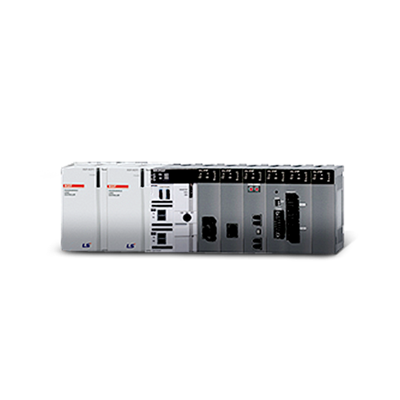

LSIS: PLC (XGR Series)


Programmable logic controller(PLC) is a general-purpose control device that automatically controls machinery, facilities and assembly lines by user defined programs. It also has a variety of communication functions for sequence, motion and process control.


Redundancy system for high-speed process control based on IEC Processing speed: 42ns/step I/O Points: Max. 131,072 Total memory: 32MB (Program 7MB, Data 2MB, Reserved 7MB, Flash 16MB) Switching over time: 50ms Built-in 256 PID loops control.


Features

High performance:

  • Processing speed: 42ns/step

  • CPU synchronization via fiber optic cable

  • I/O Points: Max. 131,072

  • Total memory: 25MB (Program 3MB, System 4MB, Data 2MB, Flash 16MB)

  • Switching over time: 22ms

Easy expansion installation using network:

  • Max.31 expansion base

  • Distance: Fiber optic 2km (Max. expansion 60km), Twisted fair 100m (Max. expansion 3km)

  • Program upload and download via expansion base

  • No limit to install the communication master on the expansion base

Enhanced maintenance via system history and network ring configuration:

  • Convenient system analyze using Operation history, Error history, System History

  • Ring configuration to prevent a line disconnection error

  • Network monitoring, Protocol monitoring function

  • Error channel monitoring via flag

  • Graphic display for the system configuration

  • Safe module exchange via Wizard

IEC 61131-3 Standard language:

  • LD, ST, SFC, IL (read only)

  • Program configuration and data type based on IEC

Variety of communication function:

  • Easy interface using Open network
    (Ethernet, Profibus-DP, DeviceNet, RS-232C, RS-422/485, etc)

  • Max.24 communication module installation on the expansion base (High speed link 12, P2P 8)

  • Network diagnosis via network and frame monitoring

  • PLC link via dedicated communication base on Ethernet (RAPIEnet)

Variety of input and output module:

  • 8 / 16 / 32 / 64 points (8 / 16 points Relay output)

  • Input / Output / Mixed module

Enhanced analog function:

  • Enable to install the analog module on the expansion base (Max. 250, Analog input 139)

  • Insulated type and Temperature module

  • Easy to set the parameter via I/O parameter and flag

  • Debugging function via special module monitoring

Integrated programming & engineering environment:

  • XG5000 : Easy to program, various monitoring functions and enhanced editing function

  • XG-PD : Convenient setup for communication and network parameter

  • XG-PM software package: Software package for positioning module


Model No.: XGR-AC12, XGR-AC13, XGR-AC22, XGR-AC23, XGR-DBDF, XGR-DBDH, XGR-DBDT, XGR-DBSF, XGR-DBSFS, XGR-DBSH, XGR-DBSHS, XGR-DBST, XGR-DC42, XGR-DMMA, XGR-E08P, XGR-E12H, XGR-E12P, XGR-M02P, XGR-M06P
