LSIS: Solid Shaft Servo Motor (XML-SB02A)
LSIS: Solid Shaft Servo Motor (XML-SB02A)


Price: (Members Only)

Quantity in Stock:

Order #: XML-SB02ADK2E
Qty:

Description Ordering Information Specifications and Drawings

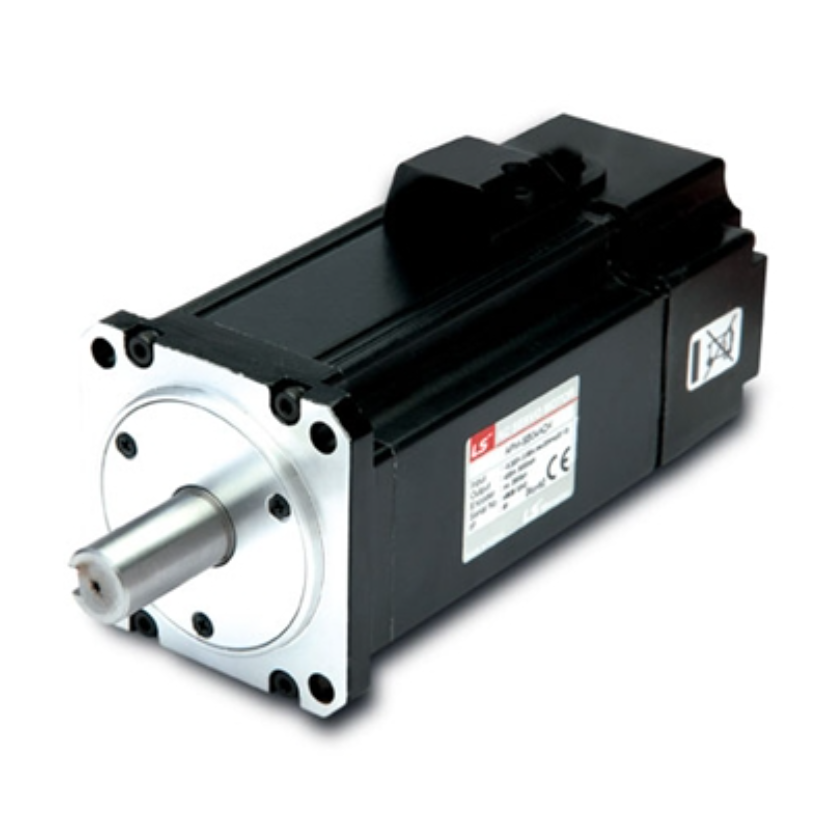

LS Mecapion: Solid Shaft Servo Motor (XML-SB02A)

Made in Korea

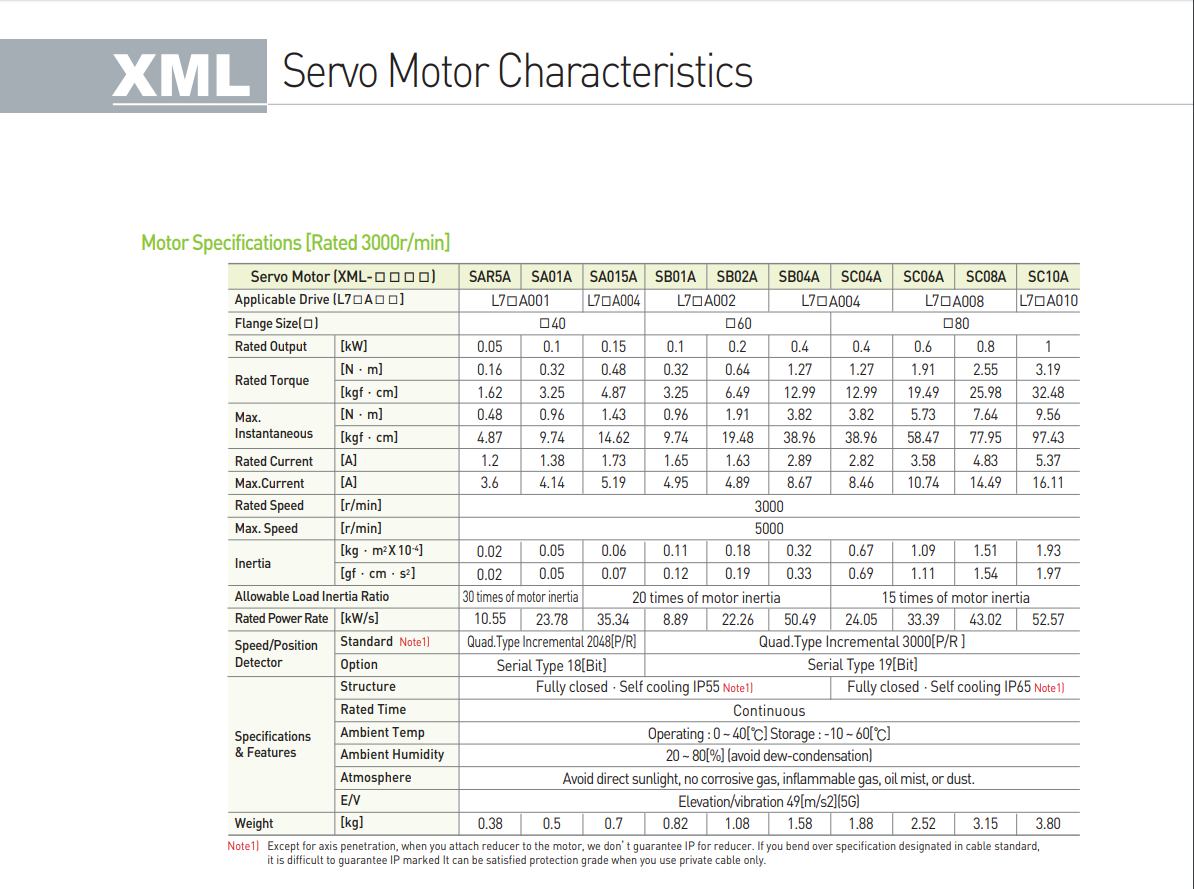

Specifications:

  • Flange Size: 60

  • Rated power: 0.2kW

  • Rated/Max torque: 0.637/1.912[N.m]

  • Rated/Max rpm: 3000/5000[rpm]

  • Speed, Position transducer: 2500[P/R]

  • Weight: 1.08 kg
