Parker: PowerStation (XPC2 Series)
XPC2 PowerStation touchscreen HMI panels have 6"-15" screens plus a no-display option. These compact embedded PCs are designed to be used as a dedicated industrial operator interface & come with WinCE 5 or XP Pro OS and a preconfigured Xpress Web Client.

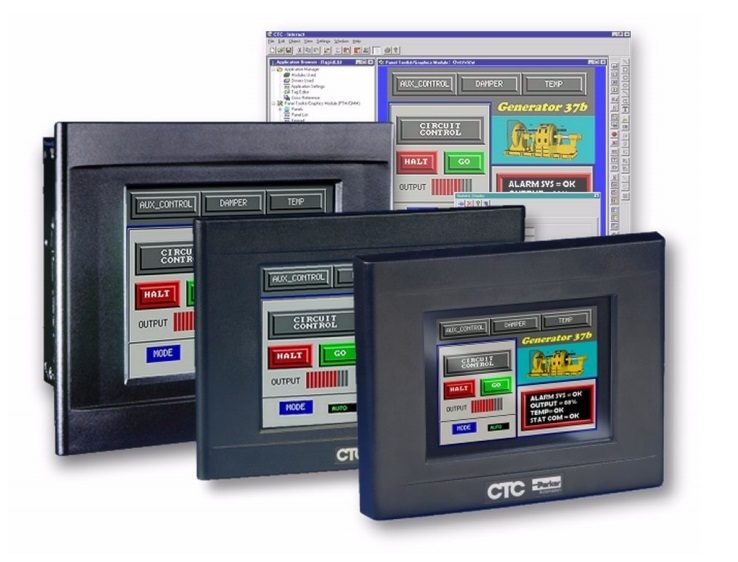

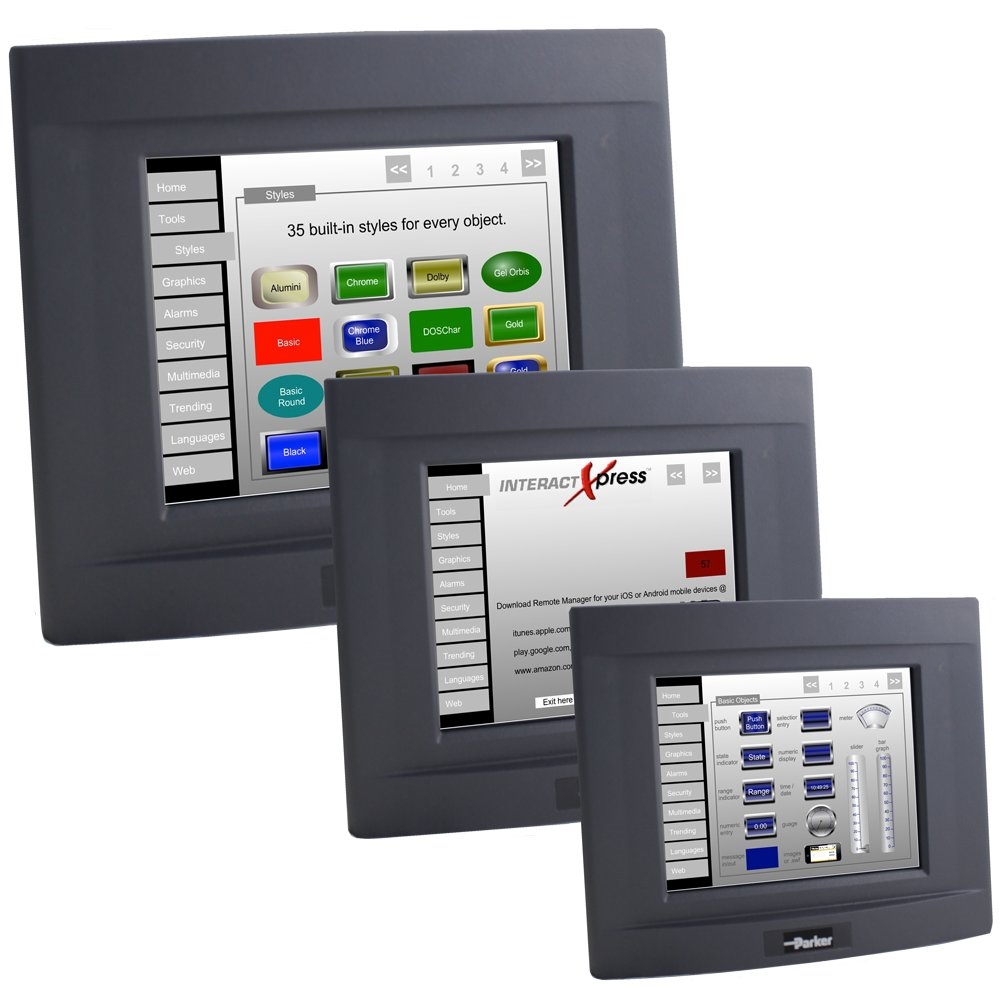

This Parker-designed and manufactured XPC2 PowerStation is a compact Industrial PC with a 6", 8", 10" or 15" TFT panel mount touchscreen and a non-display option. The XPC2 family of robust, embedded PC's have been designed to be used as a dedicated industrial operator interface. The XPC2 is available with Windows CE 5 or XP Pro operating systems and without the Interact Xpress HMI software. Mechanically, the XPC2 PowerStation is designed to fit previous model XPC PowerStation mounting cutouts and can be used as a direct, drop-in replacement while maintaining the same touchscreen functionality and NEMA Type 4X or Type 12 sealing.
XPC2 PowerStation Industrial Panel PC - Features:
No display, 6", 8", 10â and 15" touchscreen display options:6" TFT: 320x240 (QVGA) or 640x480 (VGA) / - 8" & 10" TFT: 640x480 (VGA) 12" TFT: 1024x768 (XGA) / - No Display: 1024x768 (XGA) analog output
AMD LX800 CPU, 500MHz
WindowsÂŽ CE Version 5 (Standard) / WindowsÂŽ XP Pro Available
Preconfigured Xpress Web Client
256KB to 1GB memory
256MB to 8G CompactFlash (Type 1&2) user storage
2x USB 2.0 ports
2x Serial ports (1x RS-232 + 1x configurable RS-232/RS-422/RS-485)
1x 100BaseT Ethernet port
Tested for UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment
Technical Specifications:
Product Type: Industrial Panel PC
Display Size: 6" | 8" | 10" | 15" | No Display
Display Type: Color TFT
Interface Type: Analog Resistive Touchscreen
Maximum Screen Resolution (Pixels): 6" - 10": 640x480 | 15": 1024x768
Backlight Life (Hours): 6": 75,000 | 8 - 10": 50,000 | 15": 40,000
Operating System: Windows CE 5 | Windows XP Pro
HMI Software: None Supplied
I/O Ports: 2x USB | 1x RS-232 | 1x RS-232/422/485 | 1x 100 BaseT Ethernet
CPU: AMD LX800 (500 MHz)
System Memory (DRAM): 256MB | 512MB | 1GB
Client Data Storage: 512MB | 1GB | 8GB (CompactFlash, type 1&2)
Input Supply Voltage: 12-24VDC (6"/No Display) | 24VDC (8"-15")
Operating Temperature (C): 0 ... 50
Operating Temperature (F): 32 ... 122
Operating Humidity: 0-95% (non-condensing)
Protection/Ingress Rating: UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment | Stainless Steel bezel optional on 15"
Certificates: CE | UL/cUL | Class 1 Division 2 (optional)
Model No.: XPC200, XPC206, XPC208, XPC210, XPC215
