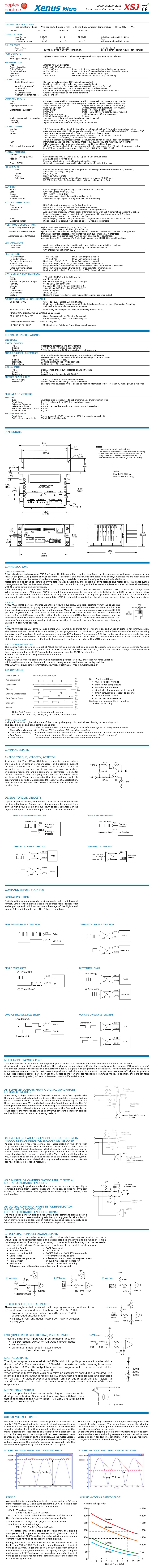

Description Specifications and Drawings


Copley Controls: Xenus Micro (XSJ-230 Series)

120-240 VAC Digital Drive for Brushless Motors


Description

Xenus Micro is a compact, AC powered servo drive for position, velocity, and torque control of AC brushless and DC brush motors. it operates on a distributed control network, as a stand-alone indexing drive, or with external motion controllers.

Feedback options now include brushless resolvers in addition to digital quad A/B and analog sin/cos incremental encoders. The multi-mode encoder port operates as an input or output for the feedback signals. As an input, a secondary digital quad A/B encoder is used for dual-loop position control. Resolver and sin/cos signals are interpolated internally with programmable resolution and appear as digital quad A/B signals when the port functions as an output. or, the digital quad A/B signals are simply buffered and made available to the system controller, eliminating cumbersome Y-cabling to share a single encoder with drive and control system.

Indexing mode simplifies operation with PLC’s that use outputs to select and launch indexes and inputs to read back drive status. A single serial port on the PlC can send ASCii data to multiple drives to change motion profiles as machine requirements change.

CAN bus operation supports Profile Position, Profile Velocity, Profile Torque, interpolated Position, and Homing. Up to 127 Xenus Micro drives can operate on a single CAn bus and groups of drives can be linked via the CAN so that they execute motion profiles together. operation in torque (current), velocity, and position modes with external motion controllers is supported. input command signals are ±10 Vdc (torque, velocity, position), PWM/Polarity (torque, velocity), or Step/Direction (position).

Feedback Versions

  • Analog Sin/Cos

  • Quad A/B digital

  • Resolver

Control Modes

  • Indexer, Point-to-Point, PVT

  • Camming, Gearing, Position, Velocity, Torque

Command Interface

  • CANopen

  • ASCII and discrete i/o

  • Stepper commands

  • ±10 Vdc position/velocity/torque command

  • PWM velocity/torque command

  • Master encoder (Gearing/Camming)

  • Digital inputs for indexer control

Communications

  • CANopen

  • RS232

Feedback

  • Digital Quad A/B encoder

  • Analog sin/cos encoder (-S versions)

  • Resolver (-R versions)

  • Secondary encoder / emulated encoder out

  • Digital Halls

I/O - Digital

  • 14 inputs, 4 outputs

Regen

  • Internal

Dimensions: mm [in]

  • 126 x 89 x 53 [5.0 x 3.5 x 2.1]


Model No.:
XSJ-230-02, XSJ-230-02-R, XSJ-230-02-S, XSJ-230-06, XSJ-230-06-R, XSJ-230-06-S, XSJ-230-10, XSJ-230-10-R, XSJ-230-10-S

*Add “-S” to part number for Sin/Cos version. Add “-R” to part number for Resolver version
