Infranor: AC Brushless Servomotors (XtraforsPrime Series) Since 1973, Mavilor SA have designed and manufactured high performance industrial servomotors which include DC Brush and AC Brushless, in conventional square and axial air gap pancake formats. The new slot-less, ironless core motors provide coggless performance for very demanding medical, simulator and other industrial applications. High torque to inertia ratios and smooth, non-cogging low speed velocity control make Mavilor the intelligent motor of choice for the most exacting applications.
XtraforsPrime, AC Servomotors

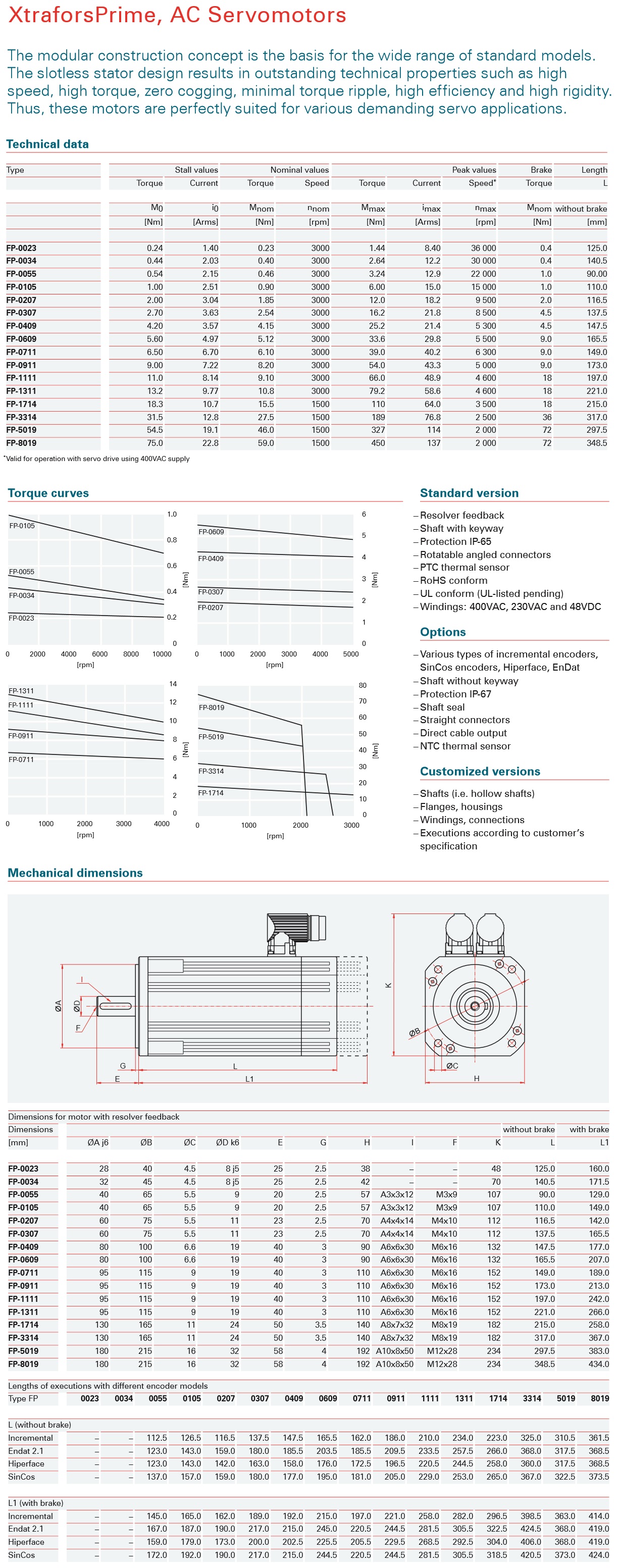

The modular construction concept is the basis for the wide range of standard models. The slotless stator design results in outstanding technical properties such as high speed, high torque, zero cogging, minimal torque ripple, high efficiency and high rigidity. Thus, these motors are perfectly suited for various demanding servo applications. The three-phase synchronous motors from the XtraforsPrime are permanently excited, electronically commutated synchronous motors for applications that require excellent dynamic characteristics and positioning precision as well as compact size and reduced weight.
Features: NdFeB permanent magnets Sinusoidal commutation with encoder or resolver as feedback unit Three-phase winding with star connection Compact sizes from 34 to 192 mm result in low weight High overload capability/peak torque 0 Cogging torque due to it’s special construction without slots in the stator High dynamic torque at high speeds Long life-span, all motor parts except for bearings are free of wear Direct diversion of lost power generated in the stator over the housing to the flange Preloaded, grooved ball bearings which are sealed on both sides and greased Complete motor system with stall torque ranging from 0.25 Nm to 75 Nm Connection using two circular plugs or cables Modular construction Wide range of standard models Customized versions CE compliant, UL listed High torque High speed No cogging

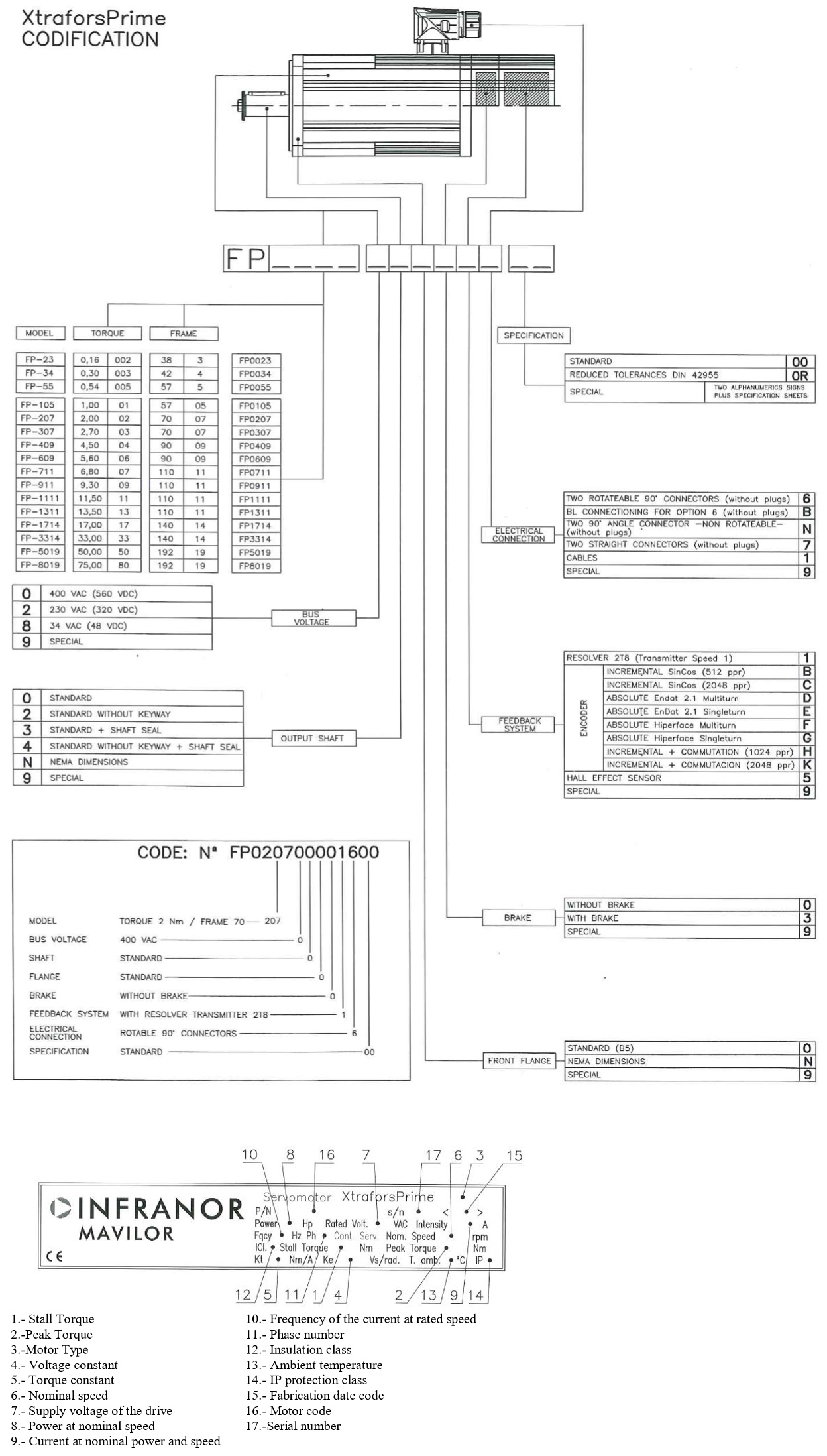

Model No.: FP-0023 800011 00, FP-0023 8000K1 00, FP-0207 000016 00, FP-0609 00016 00, FP-0609 2000K6 00, FP-0711 2000K6 00, FP-0911 000016 00, FP-0911 2300K6 00, FP-1111 2000K6 00, FP-1311 000016 00, FP-1311 2000K6 00, FP-1714 2000K6 00, FP-3314 000016 00, FP-0034 8000K1 00, FP-0055 8000K1 00, FP-0105 8000K1 00, FP-0207 8000K1 00, FP-0105 200016 00, FP-0034 200011 00, FP-0055 2000K6 00, FP-0055 200016 00, FP-0105 2000K6 00, FP-0207 2000K6 00, FP-0207 200016 00, FP-0207 200011 00, FP-0307 2000K6 00, FP-0409 2000K6 00

|
|
|
 |
|
 |
|
