RSF Elektronik: Digital Readout (Z 300 Series)
Measurement Readout
For a comfortable issue of measured values RSF Elektronik offers PC interface cards, subdividing electronics as well as the new relaunched digital readout Z 300. Z 300 replaces the legacy model of the Z 7xx series.
The Digital Readout Z 300 is especially suited for use on milling, drilling and boring machines and lathes with up to three axes. A separate I/O unit provides switching inputs/outputs for simple tasks in automation (optional accessory: IFB 48).
Description

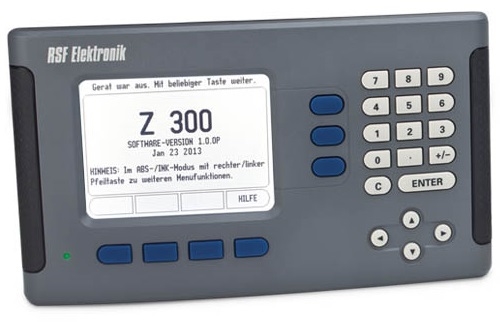

The Z 300 display unit is designed as a sturdy upright unit with splash-proof full travel keypad for use in a workshop. It is equipped with a monochrome flat screen for position values, dialog and input displays, graphic functions and graphic positioning support.
Data Interfaces
The Z 300 features an RS-232-C/V.24 serial interface for measured value transfer to a PC or printer, for input/output of parameters and compensation value lists and for dialogs.
Mounting
Z 300 is basically conceived as an upright unit. Mounting possibilities:
Threaded mounting holes M6 and M8 on the housing floor
Mounting frame (optional, ID 532 811-01) for mounting the digital readout in a housing or operating panel
Technical Data:
Features
Axes: 2 or 3
Encoder Inputs: RS-422 inputs for quadrature signals and reference pulse
Display: 5.7 " monochrome flat-panel display for position values, dialogs and inputs, softkeys
Status display: Tool, reference point, operating function, feed rate, ABS/INC, mm/inch, stopwatch
Display Steps (depends on the signal period of the connected encoder)
Adjustable, max. 7 digits
Linear axes: 1 mm to 0.0001 mm
Angular axes: 1° to 0.001° (00° 00´ 00˝)
Functions
10 datums
16 tools
REF reference mark evaluation for distance-coded or single reference marks
Distance-to-go mode
Scaling factor
mm/Inch switching
Absolute/incremental display
On-screen help and operating instructions
Graphic positioning support ("near zero" warning)
Calculator
Mode: Milling/Drilling/Boring
Calculation of positions for hole patterns (circular patterns as well as linear patterns)
Tool radius and tool length compensation
Probing functions for reference-point acquisition with KT edge finder: "edge", "centerline", "circle center"
Linear hole patterns, bolt hole circles
Mode: Turning
Taper calculator
Radius/diameter switching
Freezing the tool position for back-off
Vectoring: X/Z-display of the traverse path with inclined top slide
Sum displays for Z and Z0 (axis coupling)
Error Compensation
Axis error: Linear and multipoint over up to 200 correction points
Backlash compensation
Data Interface
V.24/RS-232-C: 300 to 115 200 Baud
Switching I/O
Input for edge finder (with switching signal or contact triggering)
Further inputs/outputs over the IFB 48 external input/output unit
Main Power Unit
AC 100 to 240 V (-10% to +10%), 47 Hz to 63 Hz, max. 135 W
Operating Temperature
0 °C to 45 °C
Protection EN 60 529
IP 40
Front panel: IP 54
Weight
2.6 kg
