CYCLONE NEMA 17 Stepper Motor : ZSM-17M-1
CYCLONE NEMA 17 Stepper Motor : ZSM-17M-1

ECET Cyclone

Price: (Members Only)


Availability: Pre-Order
Order #: ZSM-17M-1


Shaft:


Qty:

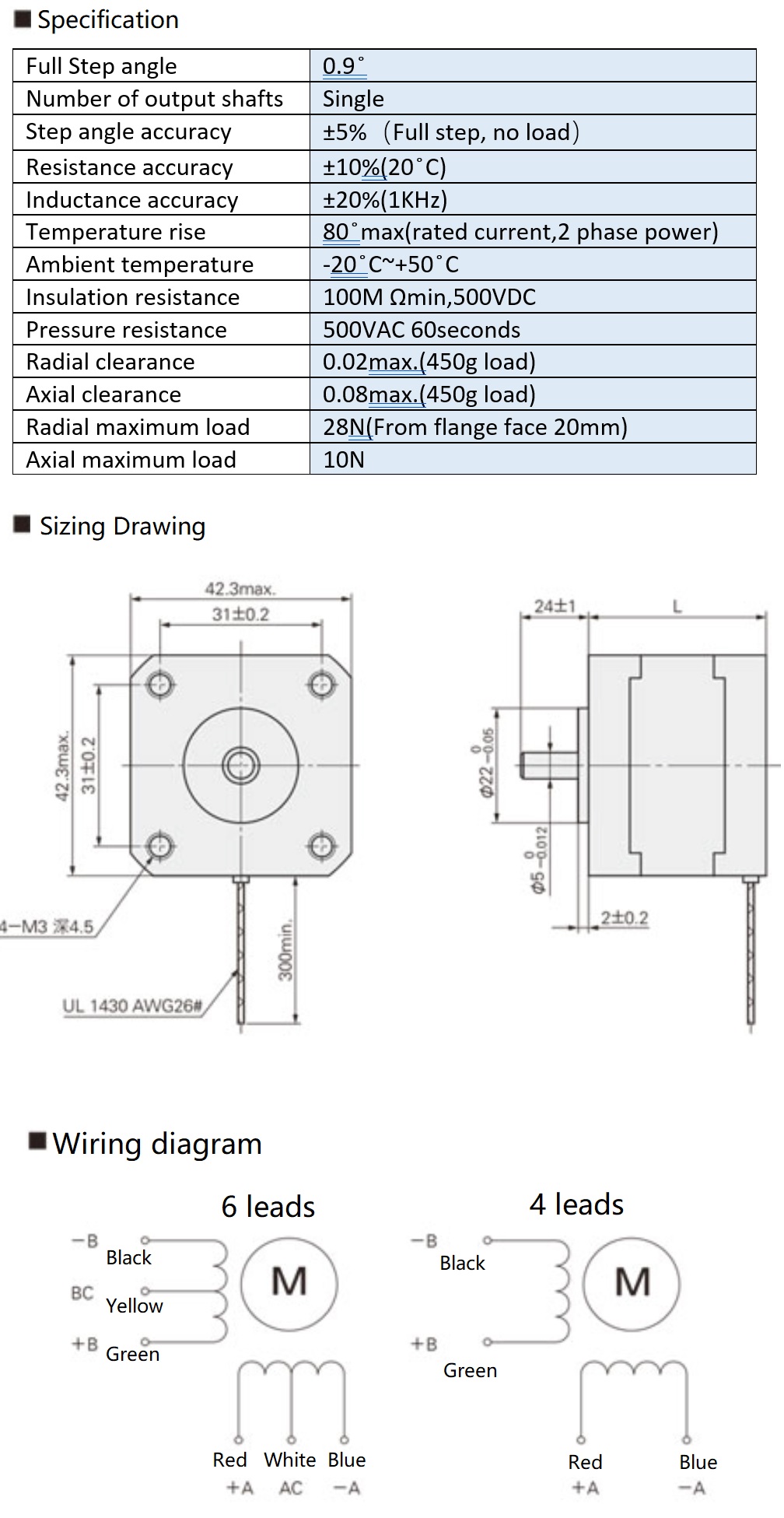

Description Specifications and Drawings


CYCLONE NEMA 17 Stepper Motor

  • Step Angle:0.9/0.45
  • Phase:2
  • Holding Torque (N.m/ oz-in): 0.158/21.94
  • Rated Current (A/Phase): 0.6
  • Resistance/phase (Ω): 10
  • Inductance/phase (mH):11
  • Rotor Inertia (g.cm2): 35
  • Motor Length (mm): 33.5
  • Weight (kg): 0.22
