Powered By E-MOTION
CYCLONE NEMA 23 High Torque Stepper MotorStep Angle:1.8/0.9Phase:2Holding Torque (N.m/ oz-in): 2.3/325.73
Rated Current (A/Phase): 3.5
Resistance/phase (Ω): 0.39
Rotor Inertia (g.cm2): 390

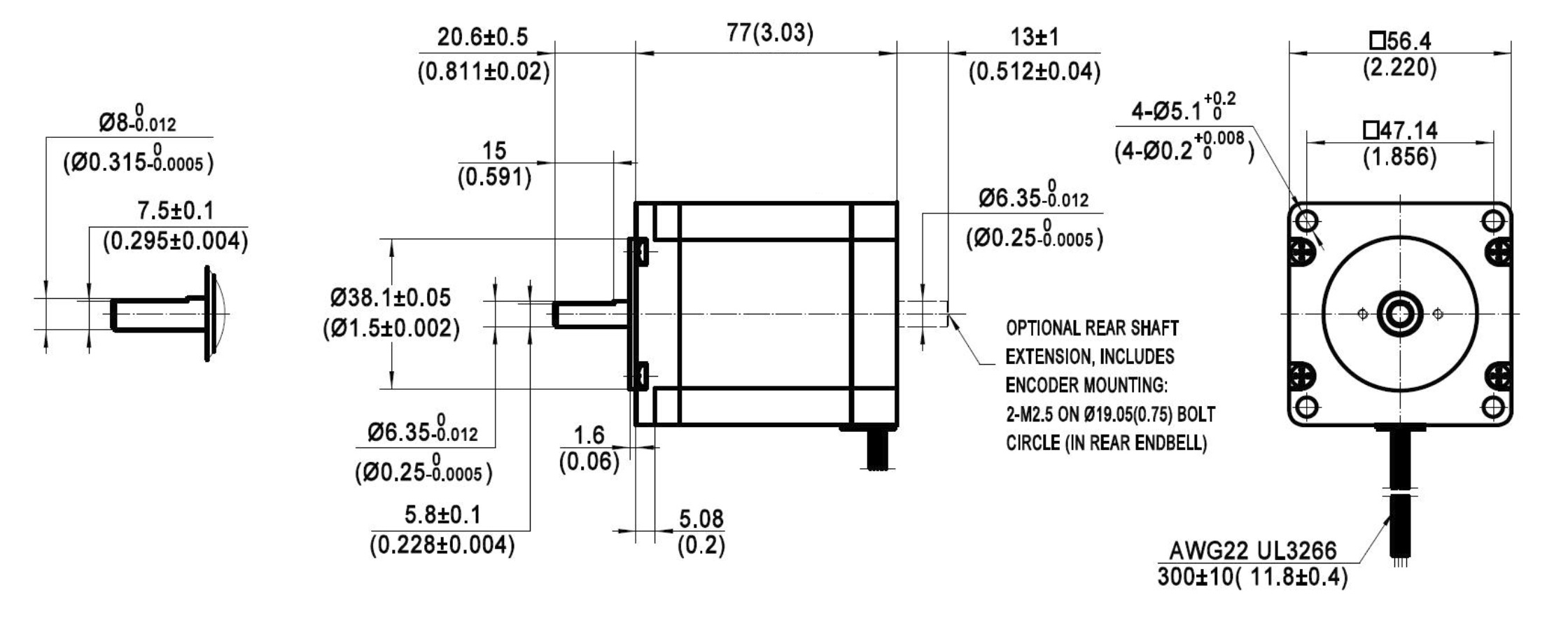

Motor Length (mm): 77
Weight (kg): 1.0
