CYCLONE NEMA 34 Stepper Motors : ZSM-34-2
CYCLONE NEMA 34 Stepper Motors : ZSM-34-2


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: ZSM-34-2


Shaft:

Qty:

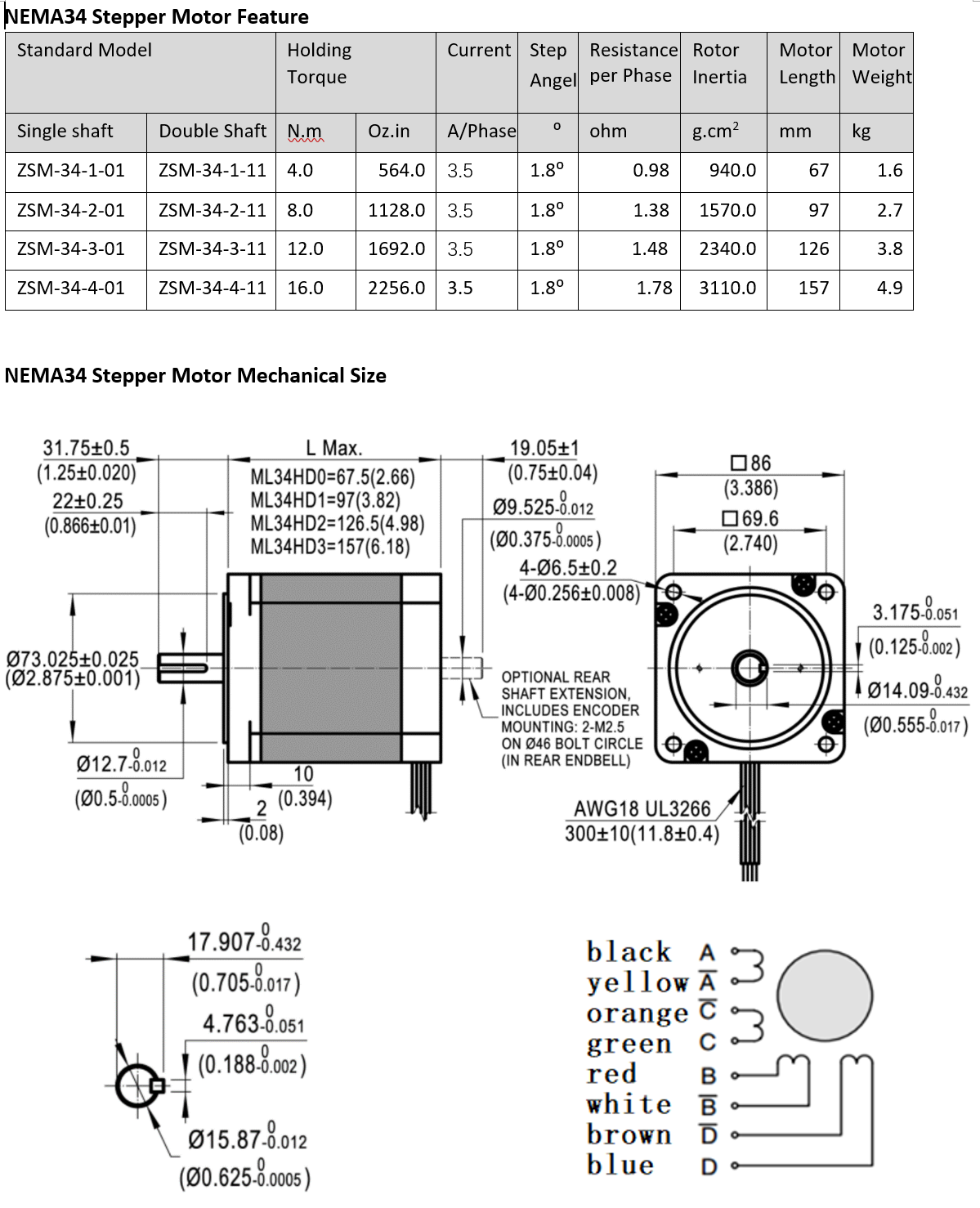

Description Ordering Information Specifications and Drawings


CYCLONE NEMA 34 Stepper Motor

Holding Torque (N.m/ oz-in): 8.0/1128.0

Rated Current (A/Phase): 3.5

Step Angle (⁰): 1.8

Resistance/phase (Ω): 1.38

Rotor Inertia (g.cm2): 1570.0

Motor Length (mm): 97.0

Weight (kg): 2.7
