CYCLONE NEMA 34 Stepper Motors : ZSM-34-4
CYCLONE NEMA 34 Stepper Motors : ZSM-34-4


Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: ZSM-34-4


Shaft:


Qty:

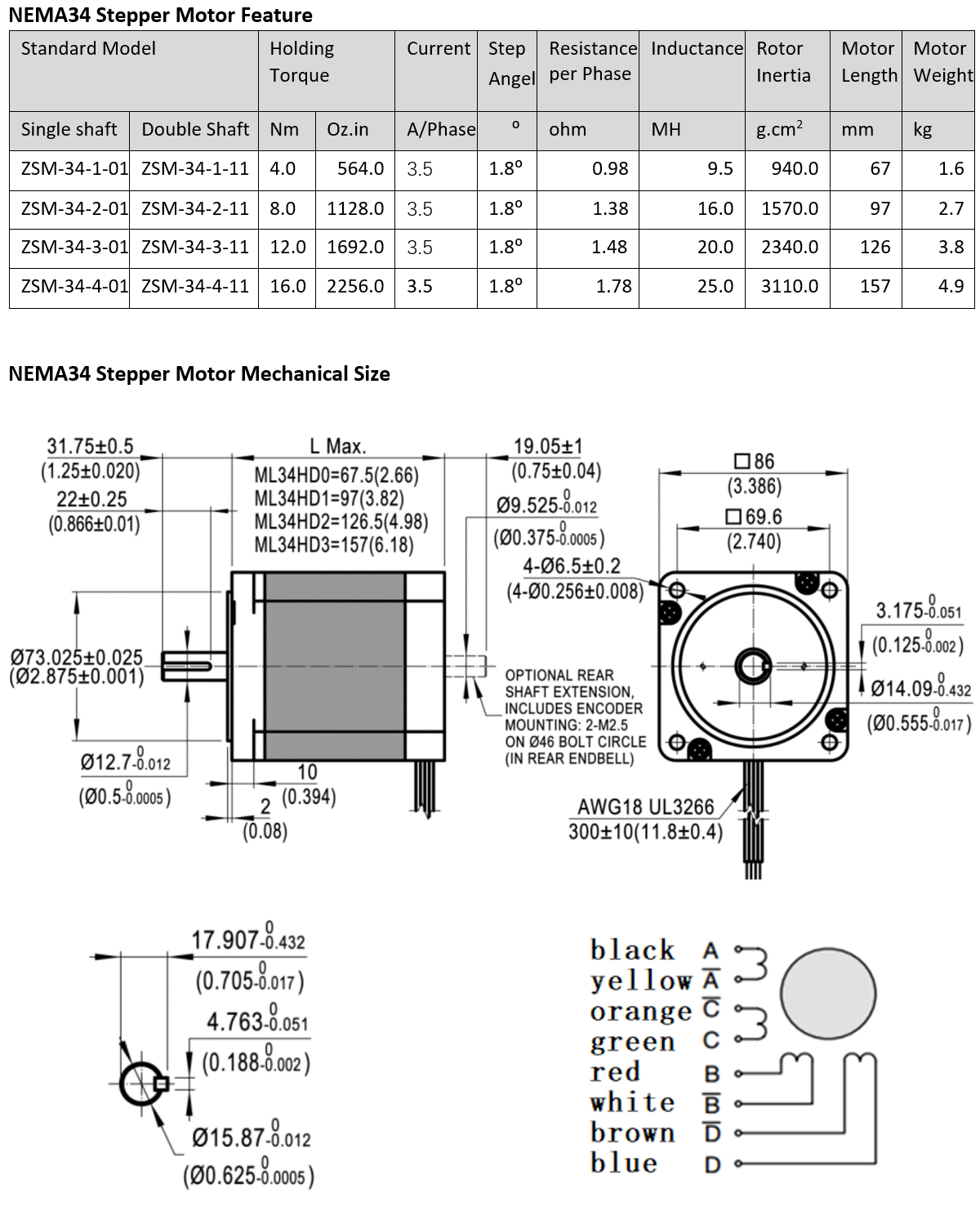

Description Ordering Information Specifications and Drawings


CYCLONE NEMA 34 Stepper Motor

Holding Torque (N.m/ oz-in): 16.0/2256.0

Rated Current (A/Phase): 3.5

Step Angle (⁰): 1.8

Resistance/phase (Ω): 1.78

Rotor Inertia (g.cm2): 3110.0

Motor Length (mm): 157

Weight (kg): 4.9

Support Links
CYCLONE 2 phase stepping motor brochure
