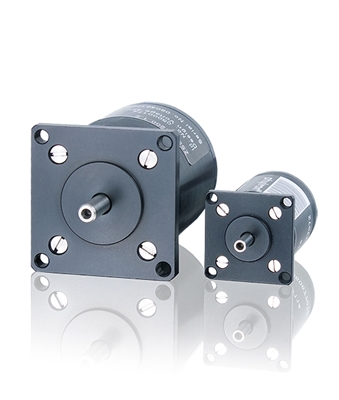

Phytron: Stepper Motors (ZSS Series) Stepper motors are synchronous motors. The rotor follows an electrically charged magnetic field. The stepper motor uses a closed loop control system as opposed to the servomotor. This means that position and the number of revolutions are known even without sensor technology by principle. In addition, stepper motors are highly reliable and long-lasting due to their precision and economical construction, even in extreme environments.
Stepper Motors ZSS: 19 – 56 mm
Convincing: performance that sets the standards. The Phytron ZSS stepper motors set powerful priorities in every movement through their silence in operation. The two phase hybrid stepper motor performs with up to 200 steps per revolution. Designed for demanding automation processes with exemplary efficiency.
Two-phase hybrid stepper motors for unipolar or bipolar control mode Holding torques from 3.8 to 700 mNm Sizes ZSS 19 to 56 mm Up to 3 motor types and 3 standard windings per size Standard number of steps/rev.: 200, step angle: 1.8° Special number of steps depending on the motor size Minimum protection mode: IP40 Permissible surface temperature: -20 °C to +120 °C Optional: gear, motor brake, encoder, 2nd shaft, heat sink, coupling, etc.
Sizes, numbers of steps, windings: see table in the data sheet Free wire ends or protective cover, heat sink, 2nd shaft Gear, motor brake, encoder
Model No.: ZSS 19, ZSS 20, ZSS 25, ZSS 26, ZSS 32, ZSS 33, ZSS 41, ZSS 41/1, ZSS 42, ZSS 42/1, ZSS 43, ZSS 43/1, ZSS 52, ZSS 56, ZSS 57
|
|
|
 |
|
 |
|
