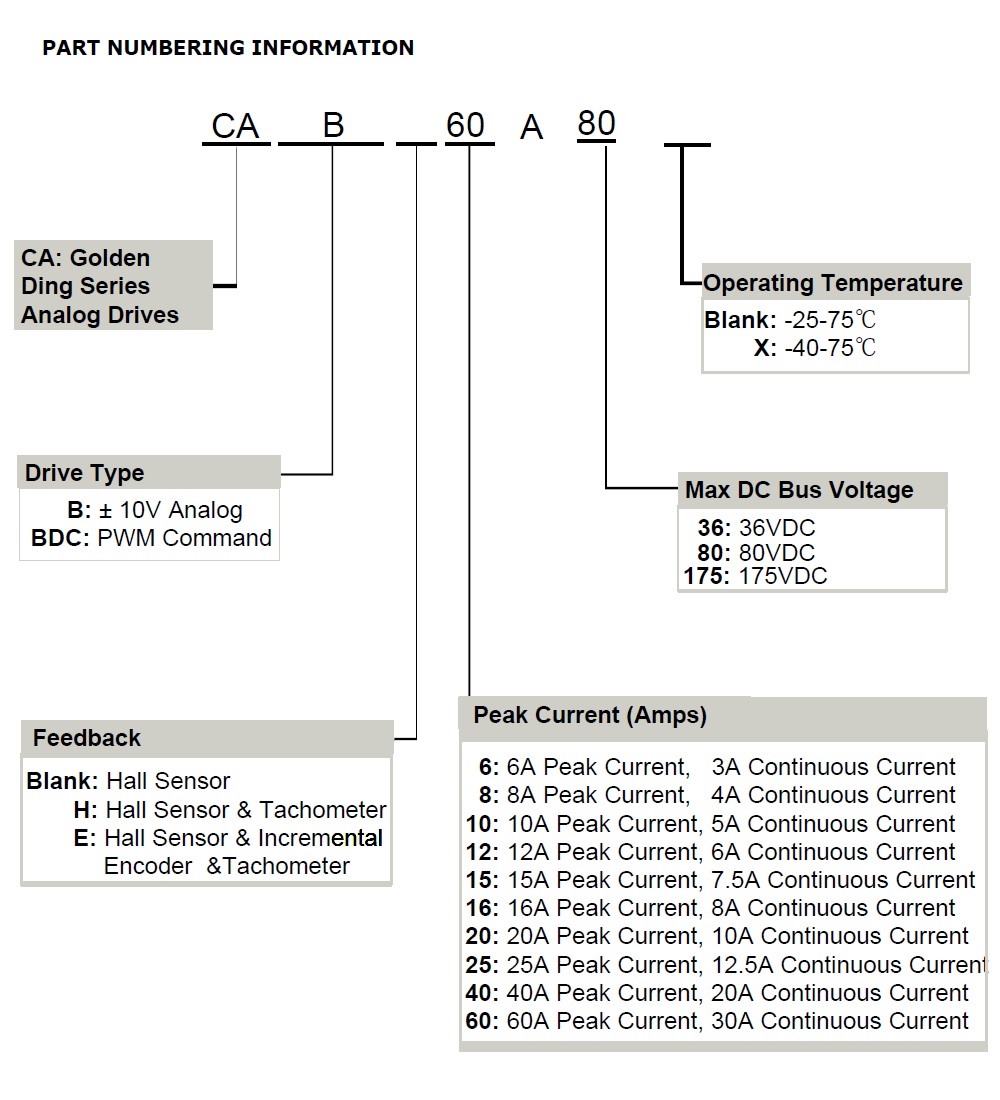

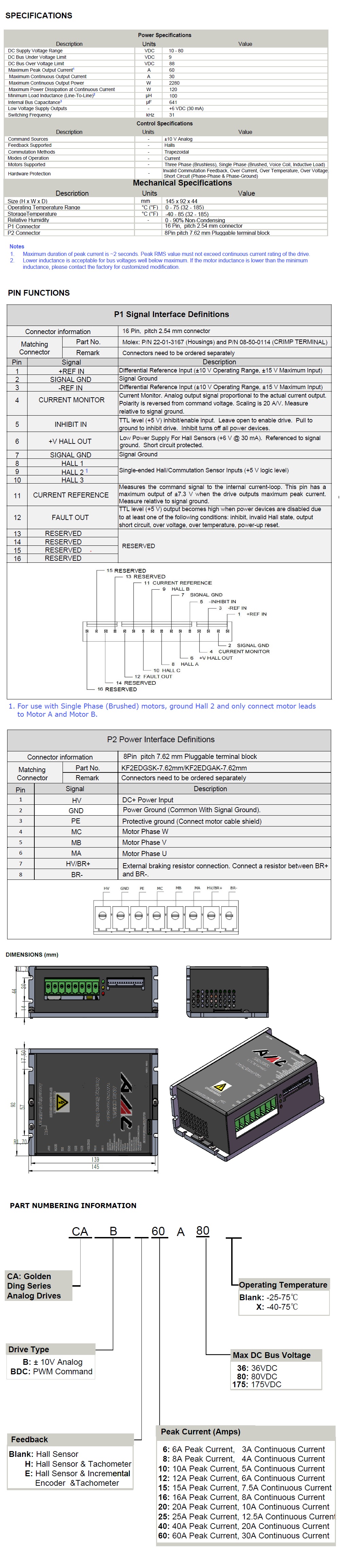

Description Ordering Information Specifications and Drawings

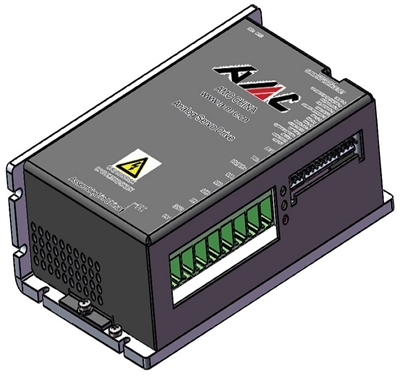

AMC China: Golden Ding Series Analog Drive CAB60A80

The CAB60A80 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. The CAB60A80 is fully protected against over-voltage, under-voltage, over-current, over-heating and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog +/-10V output.

FEATURES

  • Four Quadrant Regenerative Operation
  • Built-in regenerative and shunt regulator
  • Lightweight
  • High Switching Frequency
  • Wide Temperature Range
  • High Performance Thermal Dissipation
  • Differential Input Command
  • Digital Fault Output Monitor
  • Current Monitor Output
  • 12VDC Operation
  • Compact Size
  • High Power Density

HARDWARE PROTECTION

  • Over-Voltage
  • Under-Voltage
  • Over-Current
  • Over-Temperature
  • Short-circuit (phase-phase)
  • Short-circuit (phase-ground)

INPUTS/OUTPUTS

  • Digital Fault Output
  • Digital Inhibit Input
  • Analog Current Monitor
  • Analog Command Input
  • Analog Current Reference

FEEDBACK SUPPORTED

  • Hall Sensors

MODES OF OPERATION

  • Current

COMMUTATION

  • Trapezoidal

MOTOR SUPPORTED

  • Three Phase (Brushless)
  • Single Phase (Brushed, Voice Coil, Inductive Load)

COMMAND SOURCE

  • ±10 V Analog
