AMC China: Golden Ding Series Analog Drive CAB6A80

The CAB6A80 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. The CAB6A80 is fully protected against over-voltage, over-current, over-heating, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog +/-10V output.

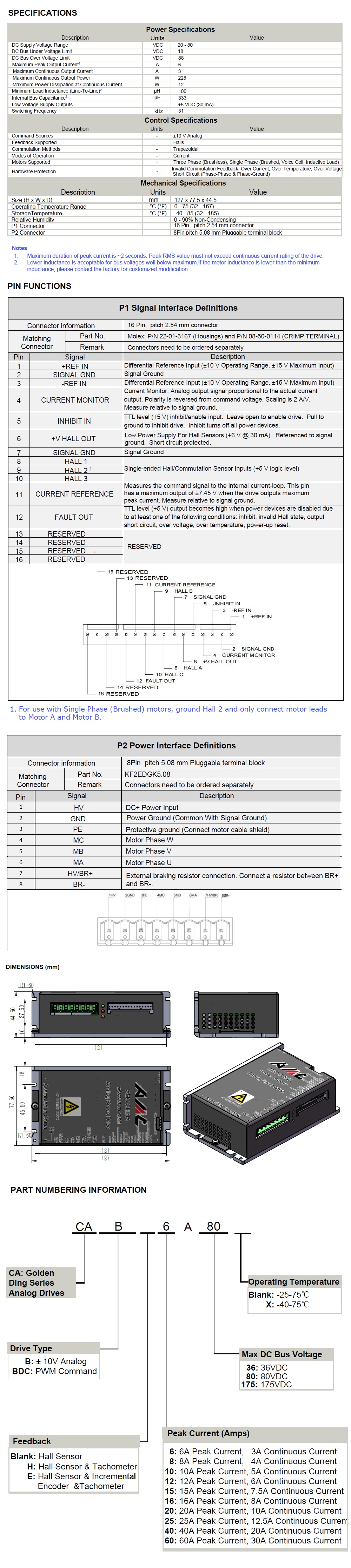

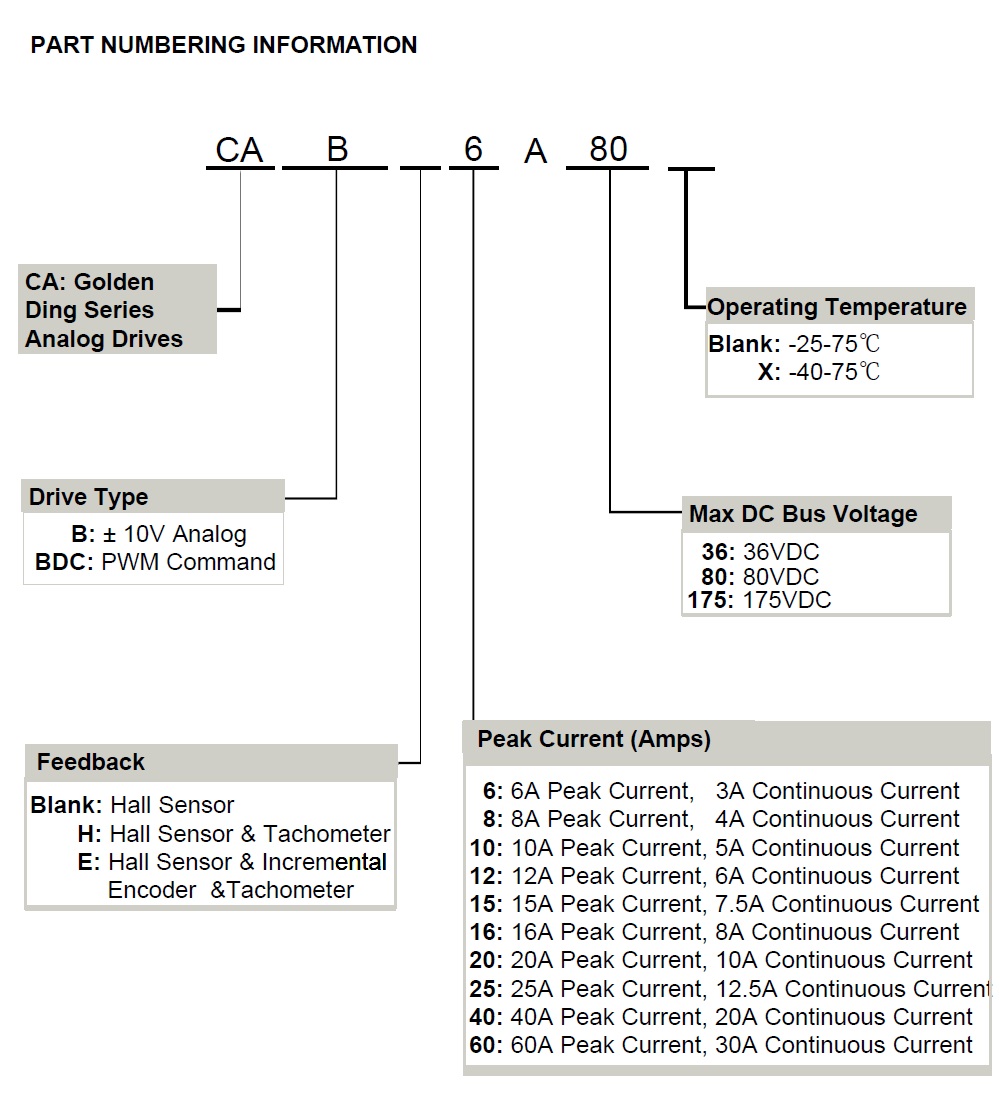

FEATURES

• Four Quadrant Regenerative Operation
• Built-in regenerative and shunt regulator
• Lightweight
• High Switching Frequency
• Wide Temperature Range
• High Performance Thermal Dissipation
• Differential Input Command
• Digital Fault Output Monitor
• Current Monitor Output
• Single Supply Operation
• Compact Size
• High Power Density

HARDWARE PROTECTION

• Over-Voltage
• Over-Current
• Over-Temperature
• Short-circuit (phase-phase)
• Short-circuit (phase-ground)

INPUTS/OUTPUTS

• Digital Fault Output
• Digital Inhibit Input
• Analog Current Monitor
• Analog Command Input
• Analog Current Reference

FEEDBACK SUPPORTED

• Hall Sensors

MODES OF OPERATION

• Current

COMMUTATION

• Trapezoidal

MOTOR SUPPORTED

• Three Phase (Brushless)
• Single Phase (Brushed, Voice Coil, Inductive Load)

COMMAND SOURCE

• ±10 V Analog
