AMC China: Golden Ding Series Analog Drive CABDC25A80X
AMC China: Golden Ding Series Analog Drive CABDC25A80X

Alternate View



Contact us for quantity price


Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: CABDC25A80X
Qty:

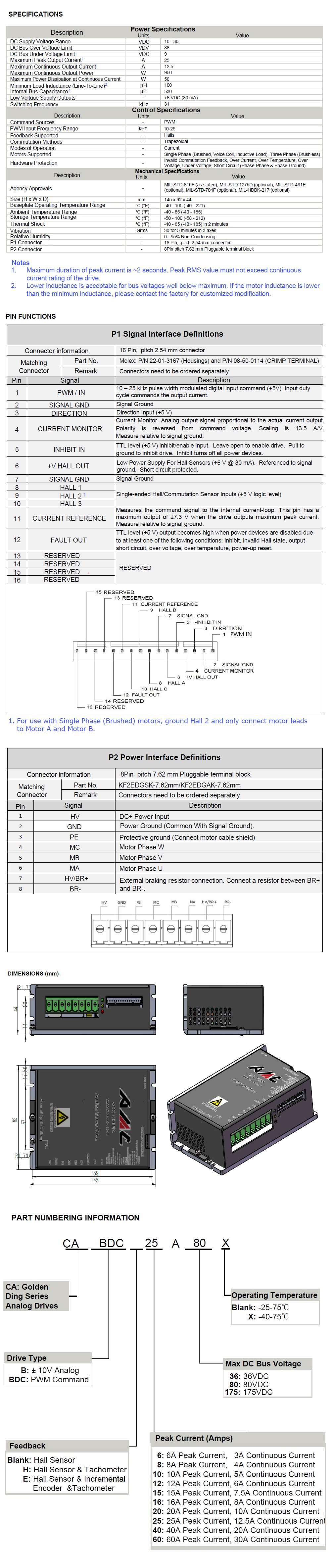

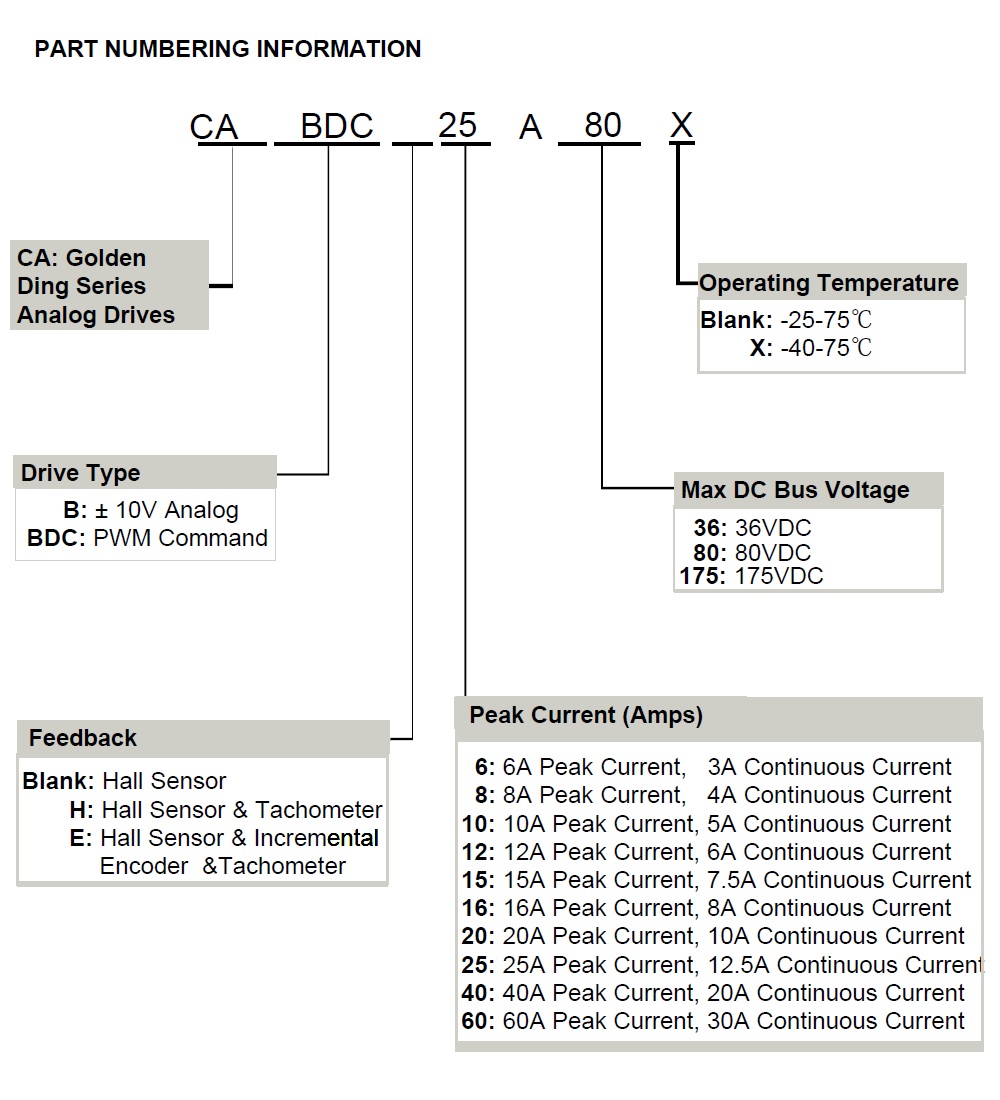

Description Ordering Information Specifications and Drawings


AMC China: Golden Ding Series Analog Drive CABDC25A80X

The CABDC25A80X PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. The CABDC25A80X is fully protected against over-voltage, under-voltage, over-current, over-heating and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have digital PWM output. The PWM IN duty cycle determines the output current and DIR input determines the direction of rotation.
The CABDC25A80X conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.

FEATURES

  • Four Quadrant Regenerative Operation
  • Built-in regenerative and shunt regulator
  • Lightweight
  • High Switching Frequency
  • Wide Temperature Range
  • High Performance Thermal Dissipation
  • Differential Input Command
  • Digital Fault Output Monitor
  • Current Monitor Output
  • 12VDC Operation
  • Compact Size
  • High Power Density

HARDWARE PROTECTION

  • Over-Voltage
  • Under-Voltage
  • Over-Current
  • Over-Temperature
  • Short-circuit (phase-phase)
  • Short-circuit (phase-ground)

INPUTS/OUTPUTS

  • Digital Fault Output
  • Digital Inhibit Input
  • Analog Current Monitor
  • Analog Command Input
  • Analog Current Reference

FEEDBACK SUPPORTED

  • Hall Sensors

MODES OF OPERATION

  • Current

COMMUTATION

  • Trapezoidal

MOTOR SUPPORTED

  • Three Phase (Brushless)
  • Single Phase (Brushed, Voice Coil, Inductive Load)

COMMAND SOURCE

  • PWM

AGENCY APPROVALS & COMPLIANCE CONSIDERATIONS

  • MIL-STD-810F (as stated)
  • MIL-STD-1275D (optional)
  • MIL-STD-461E (optional)
  • MIL-STD-704F (optional)
  • MIL-HDBK-217 (optional)
