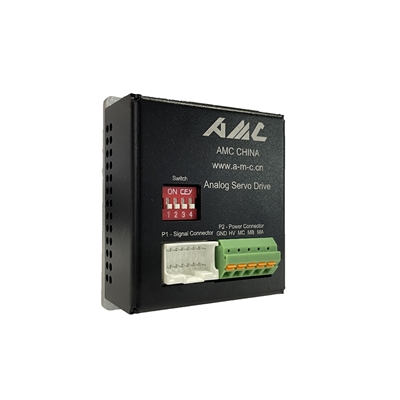

AMC China: Golden Ding Series Analog Drive CABE10A36

The CABE10A36 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. The CABE10A36 is fully protected against over-voltage, under-voltage, over-current, over-heating, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. The CABE10A36 can utilize incremental encoder feedback for velocity control, and Hall Sensors for commutation.

FEATURES

• Four Quadrant Regenerative Operation
• Direct Board-to-Board Integration
• Lightweight
• High Switching Frequency
• Wide Temperature Range
• Differential Input Command
• Digital Fault Output Monitor
• Current Monitor Output
• Encoder Velocity Mode
• Compact Size
• High Power Density
• 12VDC Operation

HARDWARE PROTECTION

• Over-Voltage
• Under-Voltage
• Over-Current
• Over-Temperature
• Short-circuit (phase-phase)
• Short-circuit (phase-ground)

INPUTS/OUTPUTS

• Digital Fault Output
• Digital Inhibit Input
• Analog Current Monitor
• Analog Command Input

FEEDBACK SUPPORTED

• Hall Sensors
• Incremental Encoder

MODES OF OPERATION

• Encoder Velocity

COMMUTATION

• Trapezoidal

MOTOR SUPPORTED

• Three Phase (Brushless)
• Single Phase (Brushed, Voice Coil, Inductive Load)

COMMAND SOURCE

• ±10V Analog
