AMC China: Golden Ding Series Analog Drive CABH10A36
AMC China: Golden Ding Series Analog Drive CABH10A36


Contact us for quantity price


Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: CABH10A36
Qty:

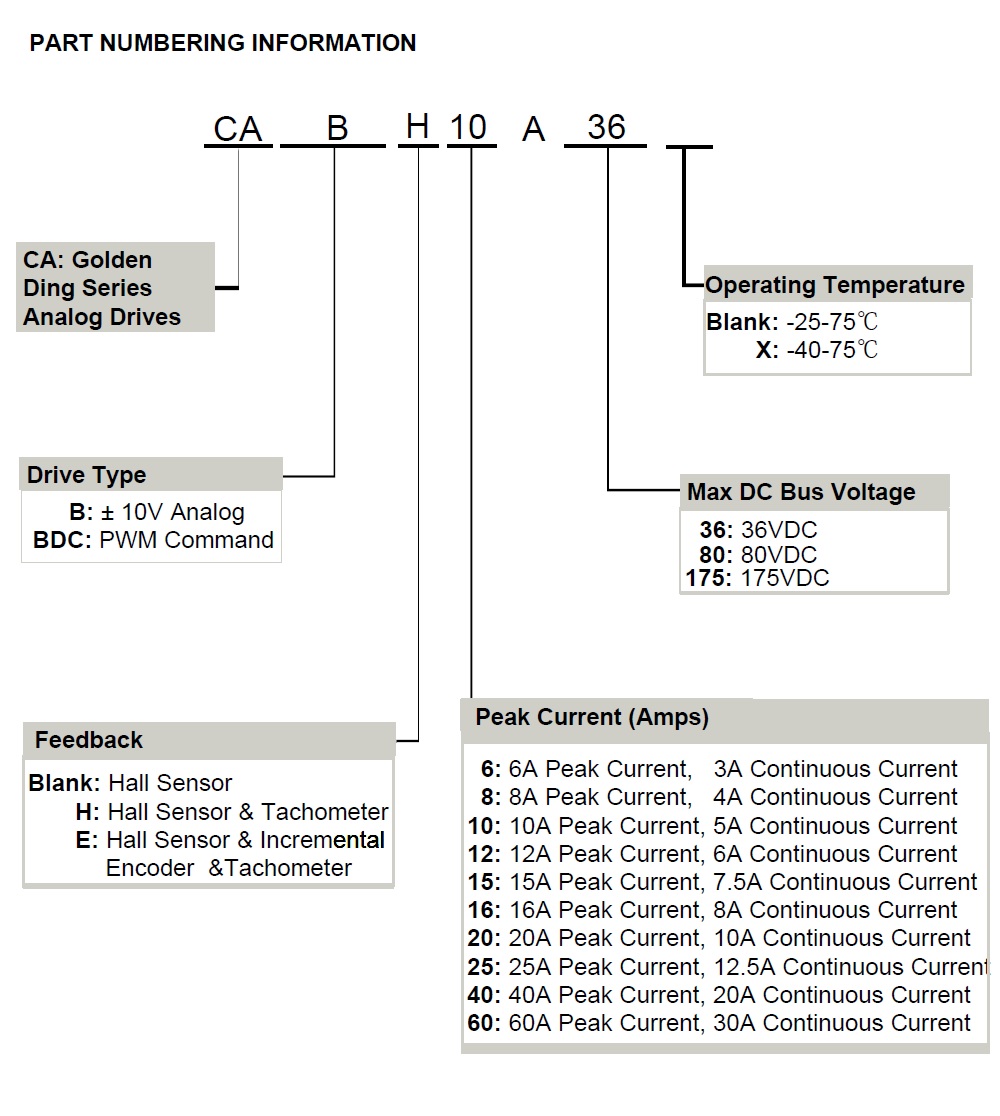

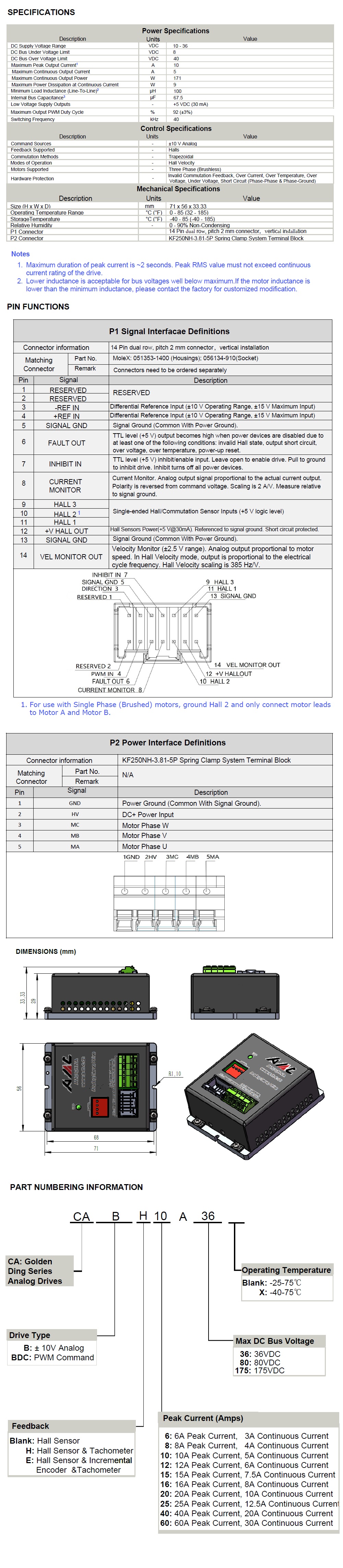

Description Ordering Information Specifications and Drawings


AMC China: Golden Ding Series Analog Drive CABH10A36

The CABH10A36 PWM servo drive is designed to drive brushless DC motors at a high switching frequency. The CABH10A36 is fully protected against over-voltage, under-voltage, over-current, over-heating, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. The CABH10A36 utilizes Hall Sensor feedback for velocity control.

FEATURES

  • Four Quadrant Regenerative Operation
  • Direct Board-to-Board Integration
  • Lightweight
  • High Switching Frequency
  • Wide Temperature Range
  • Differential Input Command
  • Digital Fault Output Monitor
  • Current Monitor Output
  • Hall Velocity Mode
  • Compact Size
  • High Power Density
  • 12VDC Operation

HARDWARE PROTECTION

  • Over-Voltage
  • Under-Voltage
  • Over-Current
  • Over-Temperature
  • Short-circuit (phase-phase)
  • Short-circuit (phase-ground)

INPUTS/OUTPUTS

  • Digital Fault Output
  • Digital Inhibit Input
  • Analog Current Monitor
  • Analog Command Input

FEEDBACK SUPPORTED

  • Hall Sensors

MODES OF OPERATION

  • Hall Velocity

COMMUTATION

  • Trapezoidal

MOTOR SUPPORTED

  • Three Phase (Brushless)

COMMAND SOURCE

  • ±10V Analog
